Funnel 110 cm
For tasks requiring reliable coverage of a particularly large area.
- Drain liquids in a controlled manner
- Extra large collection area

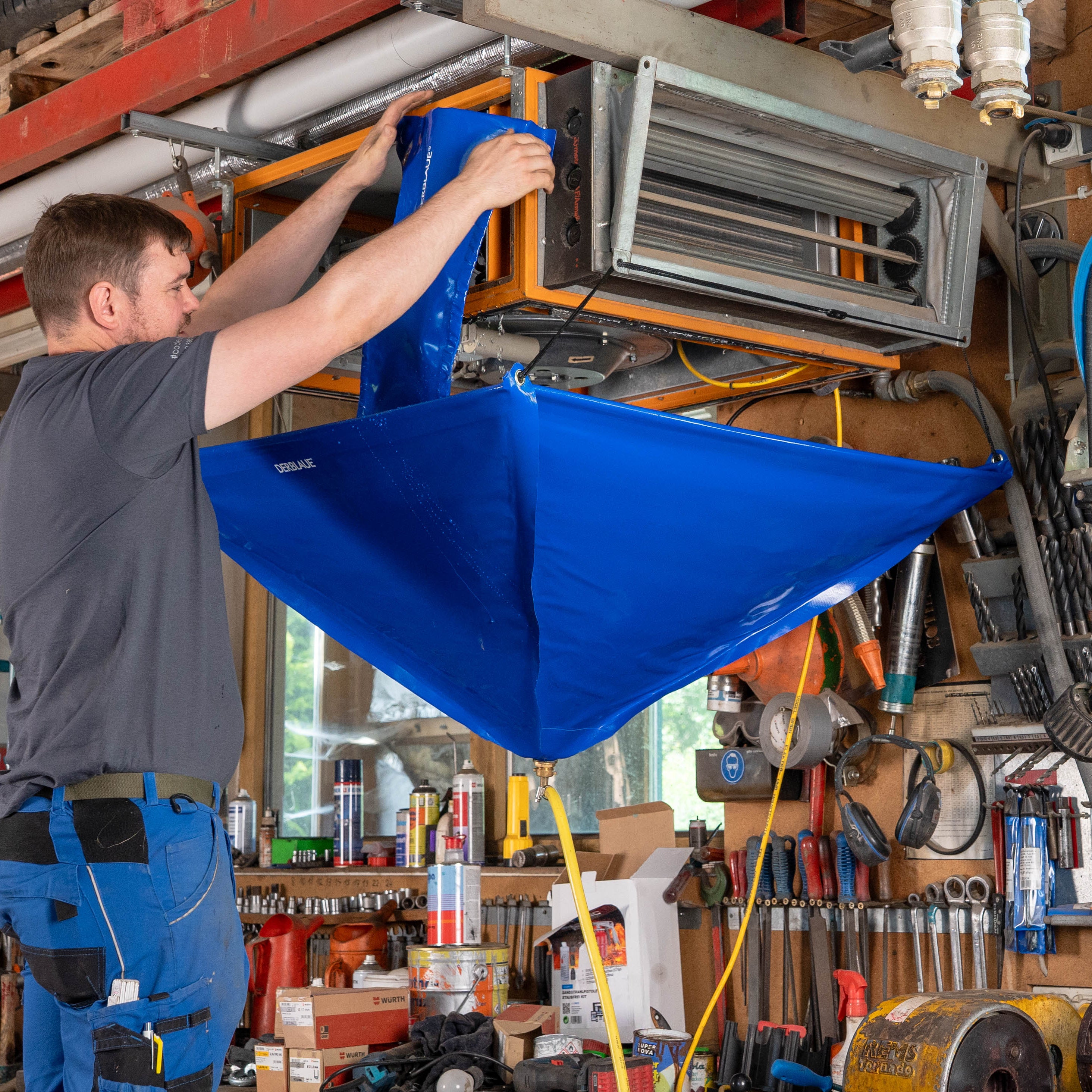

- Ideal for cleaning ceiling cassettes
The DERBLAUE® Funnel 110 has been specially developed for the professional maintenance and cleaning of ceiling panels. With its particularly large collection area, it reliably protects the working environment and the floor from leaking liquids, drips and splashes.
The one-handed suspension system allows the funnel to be positioned directly beneath the ceiling cassette and flexibly adjusted to suit the specific working situation. The integrated fibreglass rods ensure that the funnel retains its shape during maintenance and forms a generous collection area around the work area.
Any dirty water produced can be drained off in a targeted and controlled manner via the 3/4-inch brass connection using a hose.
Thanks to its large coverage area, the Funnel 110 is particularly suitable for ceiling cassettes and other applications where a larger work area needs to be reliably protected from liquids.
Choose options
For tasks requiring reliable coverage of a particularly large area.
- Drain liquids in a controlled manner
- Extra large collection area
- Ideal for cleaning ceiling cassettes
110 x 110cm
Opening
approx. 70l
Capacity
80kg
max. load
Technical specifications
| Item number | 12017 |
|---|---|
| Dimensions | 110 x 110 cm |
| Capacity | approx. 70 l |
| Connection | ¾″ male thread · ½″ female thread |
| Connection material | brass |
| Suspension | approx. 80–140 cm height-adjustable |
| Max. suspension load | 80 kg |
| Temperature resistance | up to 100 °C |
| Filter | removable filter insert |
| Design | flexible fiberglass rods |
| Material | fabric-reinforced special tarpaulin |
| Resistance | heating water · glycol-containing liquids |
| Not suitable for | drinking water |

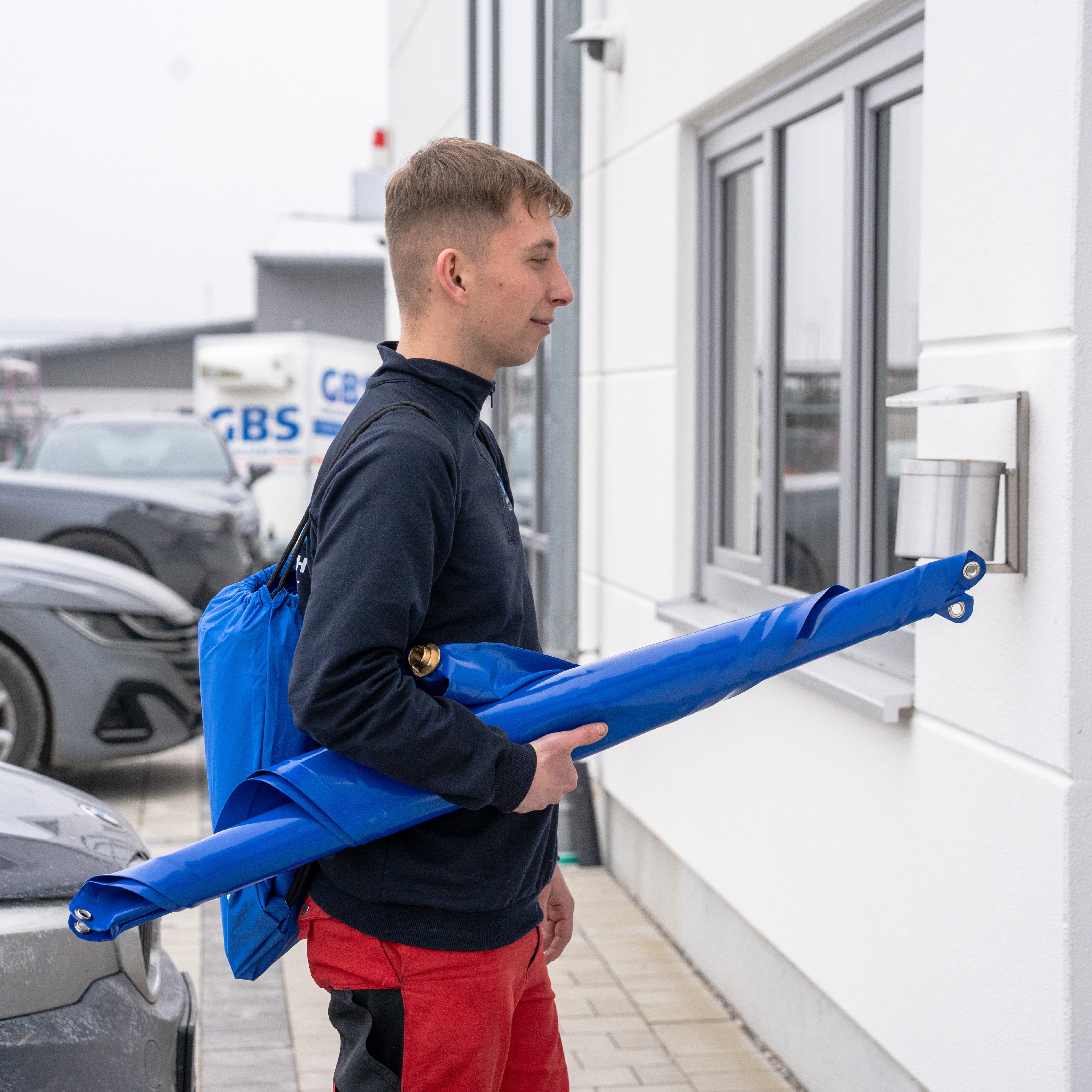

Compact & handy
The robust, fabric-reinforced special PVC tarpaulin can be folded or rolled up to save space and is easy to transport.
Controlled discharge
Liquids are specifically collected and diverted.
Flexibly positionable
The product can be aligned and fastened to suit the specific workstation.
Clean work
Floors, walls, and structural components are shielded from dirt and liquids.

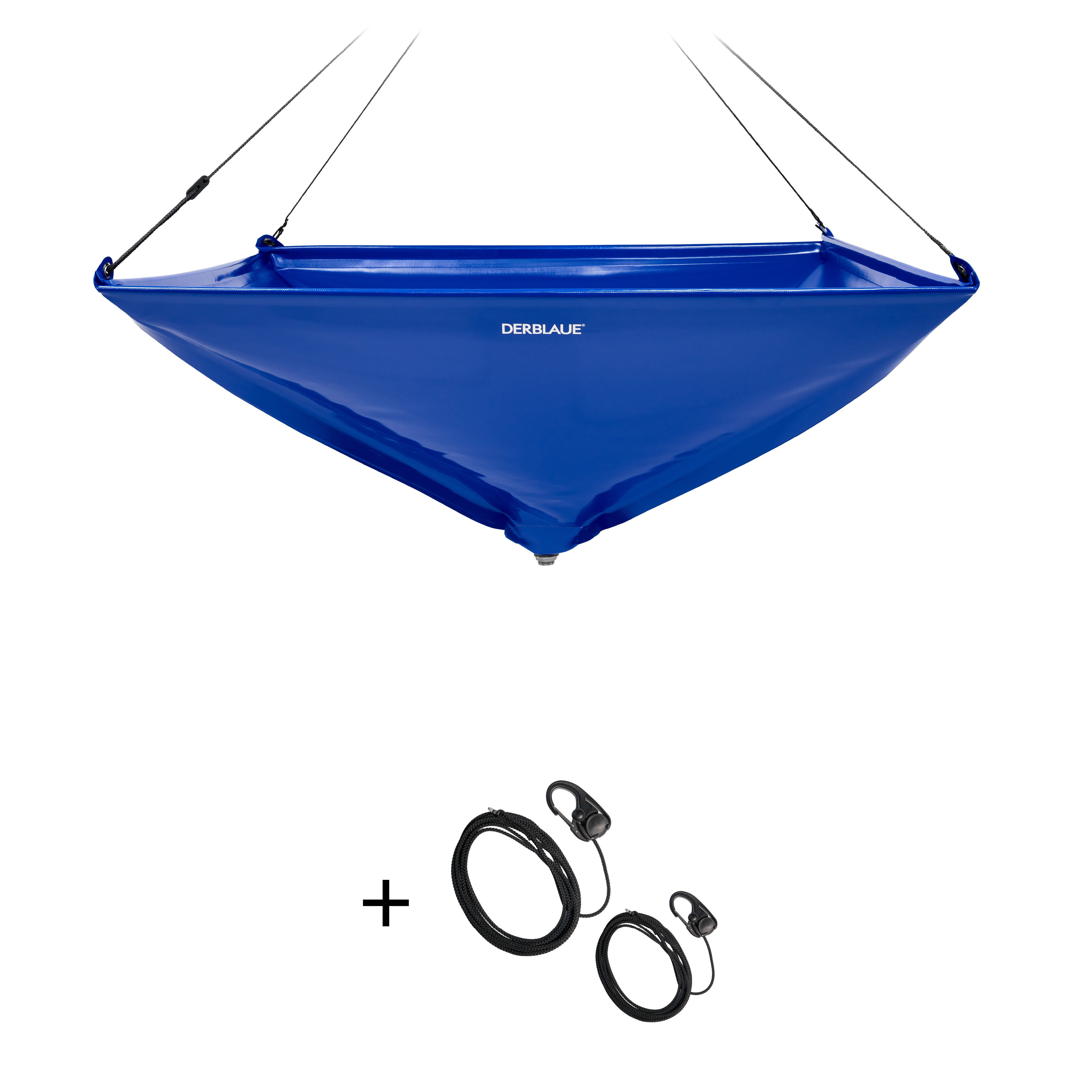

2 parts, one system

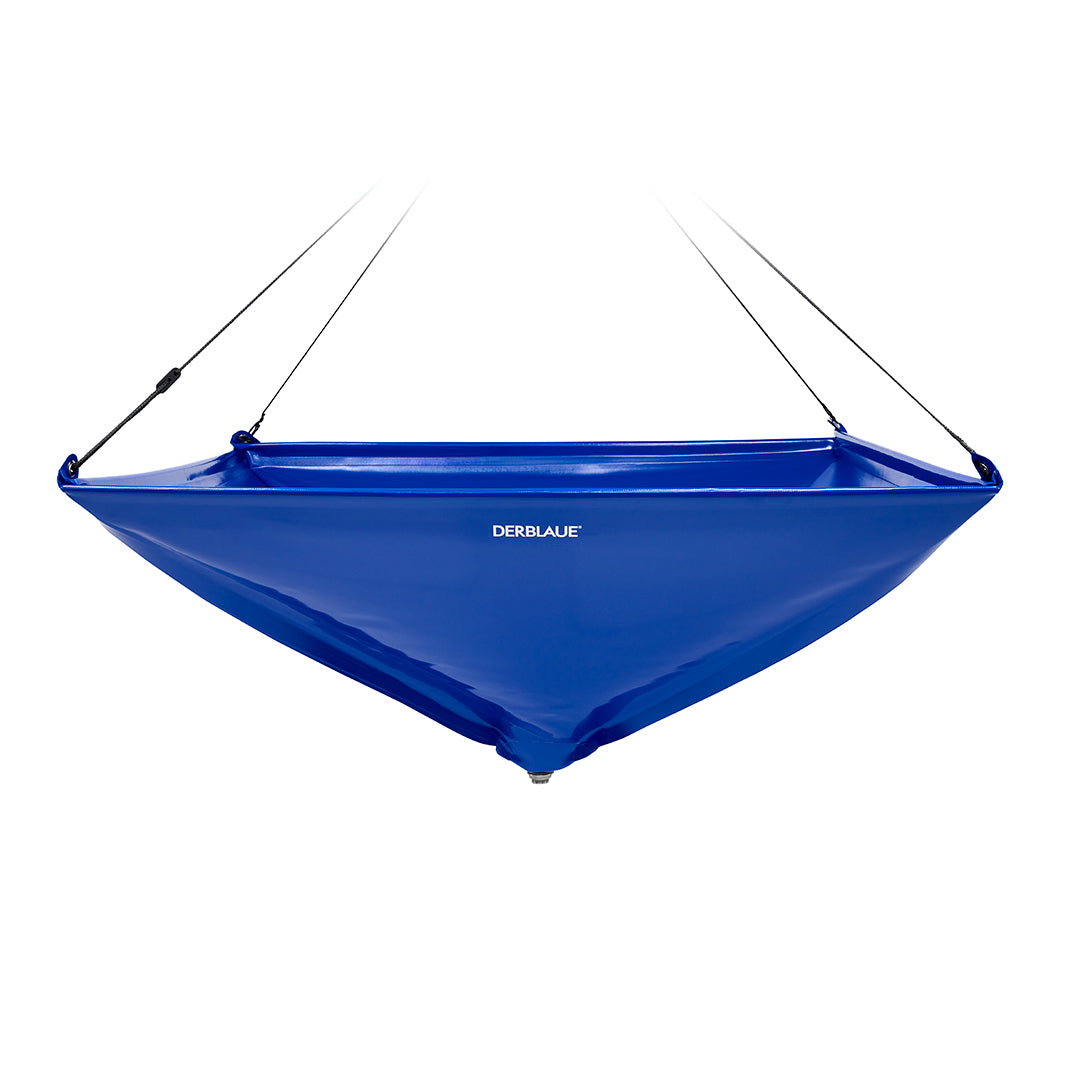

Funnel 110
Large-area collection funnel measuring 110 x 110 cm – for large work areas and controlled drainage of liquids.

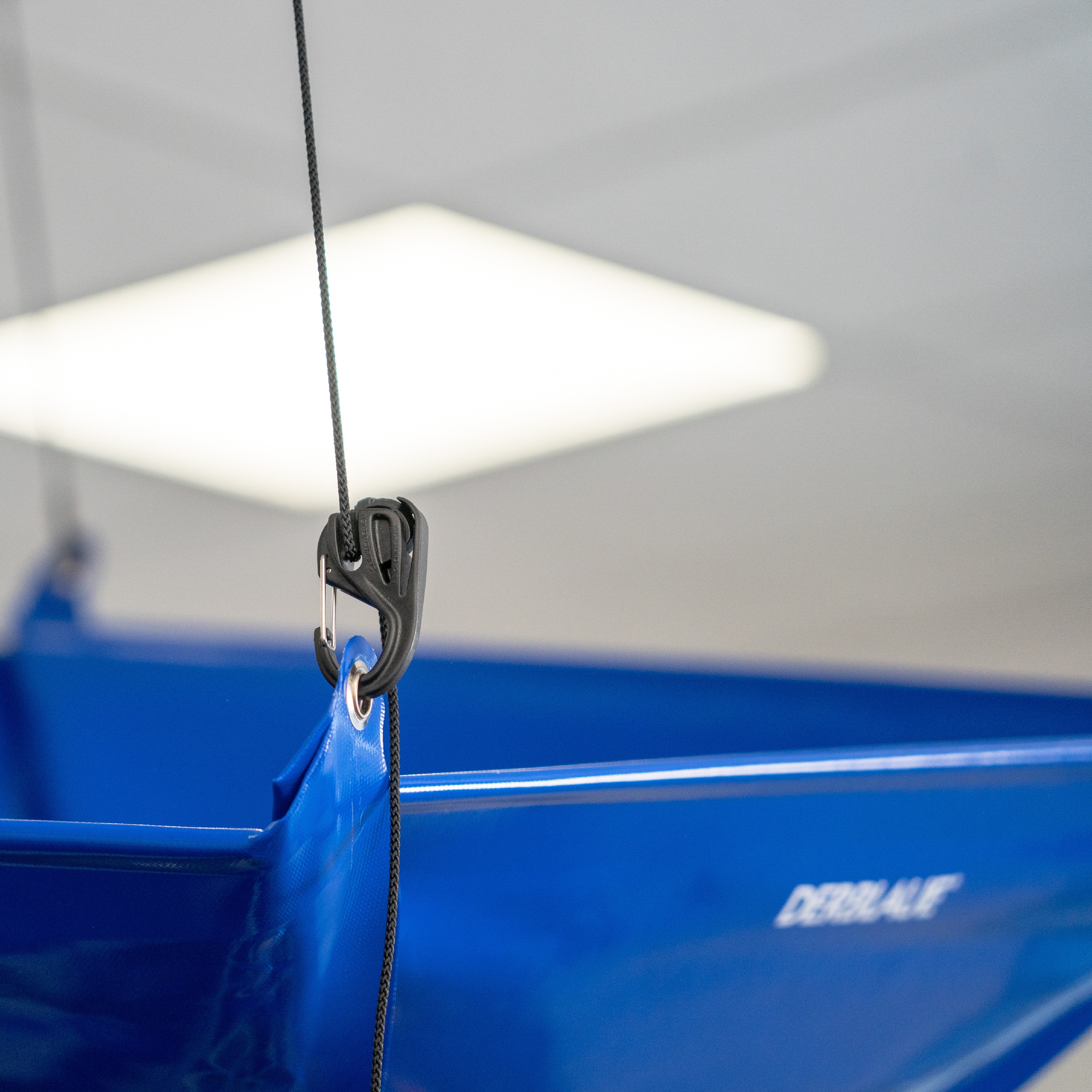

One-hand suspension system
Allows for quick and easy hanging with just one hand.
Frequently Asked Questions
What material is the hose connection made of, and what thread sizes does it have?
The hose connection is made of sturdy brass. It has a ¾-inch external thread and a ½-inch internal thread, and can be used with suitable hoses and fittings.
What suspension system is used with the Funnel 110?
The Funnel 110 uses the one-hand suspension system, which is available in lengths of approx. 5 to 300 cm. It is designed for a maximum load of 80 kg.
Check the rope, attachment points and connecting elements for damage and ensure they are securely fastened before each use.
What is the capacity of the Funnel 110?
The Funnel 110 has a capacity of approximately 70 litres.
The liquid is continuously drained off via the connected hose. This means that even larger quantities of liquid can be collected.
How does the Funnel 110 retain its shape?
The funnel is held in shape by sturdy fibreglass rods. This ensures that the large collection area remains reliably open during use.
What types of work is the Funnel 110 suitable for?
The Funnel 110 is suitable for large discharge areas and jobs where a particularly large collection area is required.
Typical areas of application include:

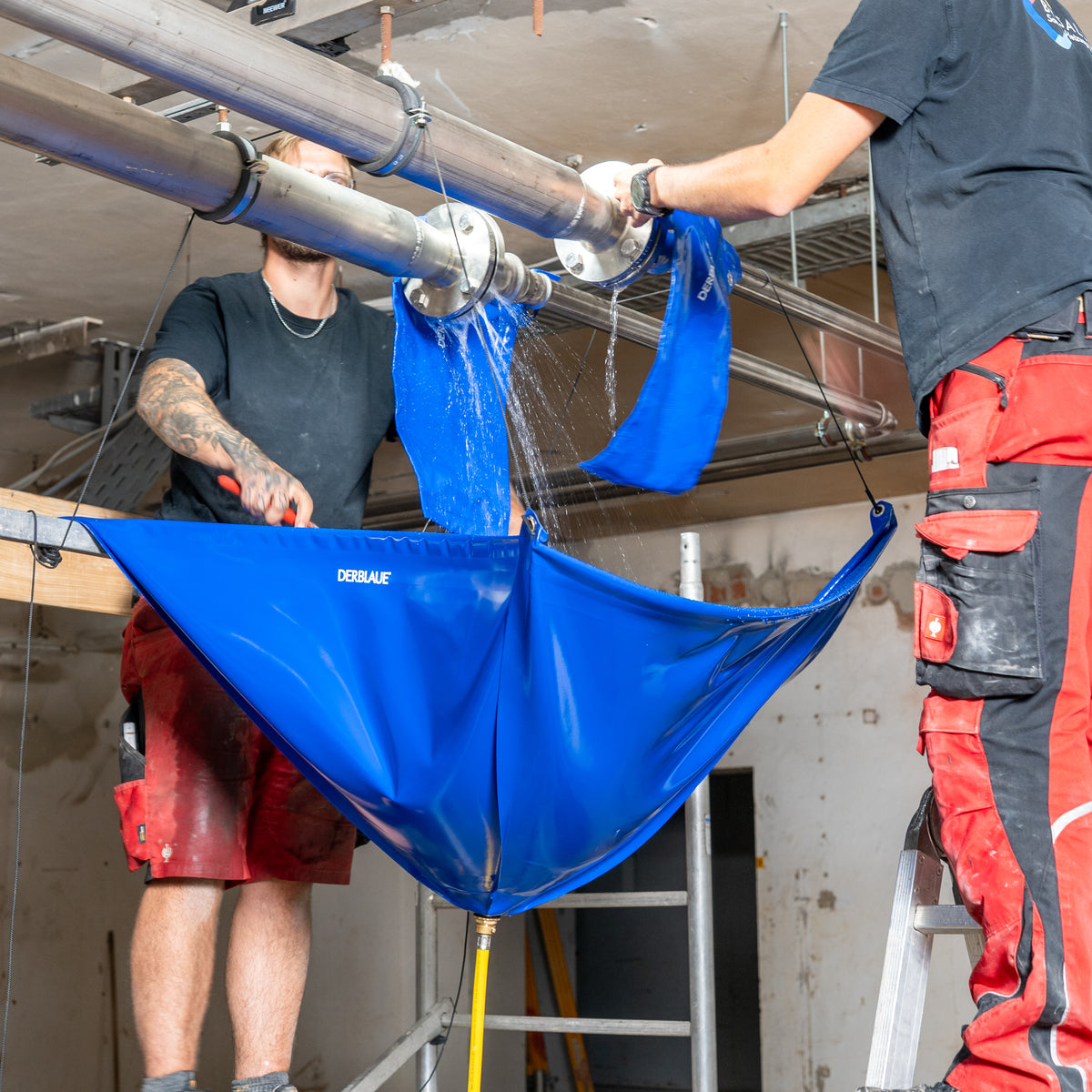

• large pipework
• downpipes
• property connections
• ceiling panels up to approx. 110 cm
• maintenance, repair and installation work
When should I choose the Funnel 110?
The Funnel 110 is ideal when you need to cover as large an area as possible or when the spill site cannot be precisely pinpointed.
Can the Funnel 110 be used with a hose?
Yes. The liquid can be drained directly from the work area via the integrated hose connection.
Can I use this product with drinking water?
No. The product must only be used with non-potable liquids to protect water quality.
