Slide
Bridges the gap between the exit point and the professional tub, ensuring clean conveyance.
- 50 cm long
- Can be secured with magnets or eyelets
- Flexibly shapeable

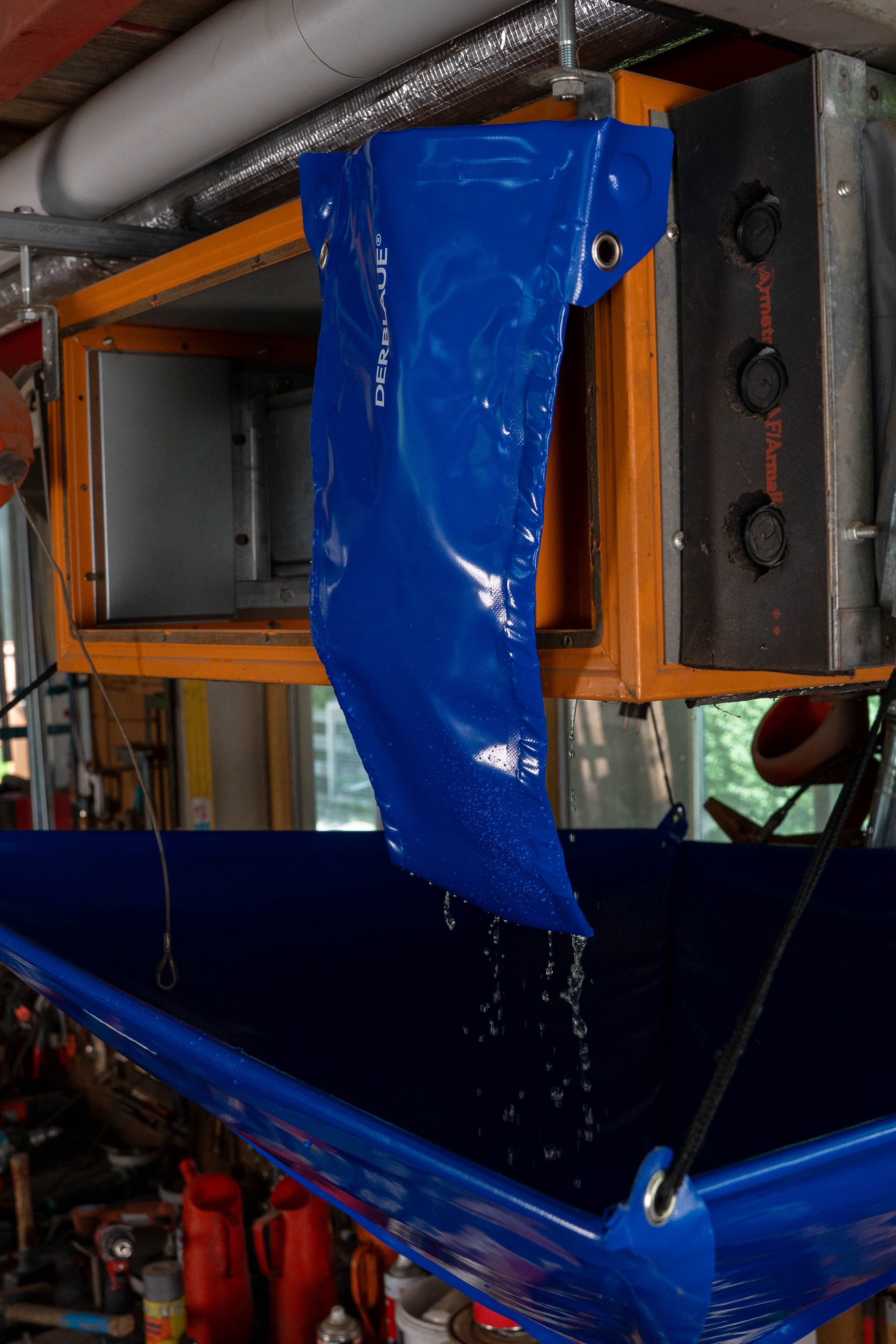

The DERBLAUE® Slide has been awarded the Innovation Prize and is designed to channel liquids from hard-to-reach discharge points into a containment tub in a targeted and controlled manner.
Thanks to the integrated bending metal elements, the Slide can be flexibly adapted again and again to the installation situation at hand. For example, it can be shaped around components, under screw connections or along a machine.
For secure fastening, the Slide has mounting tabs with strong neodymium magnets and eyelets. This allows it to be attached to metal surfaces, as well as to the bending metal elements of the Professional Tub and the Splash Guards, among other things. It therefore stays securely in position without having to be held in place permanently while you work.
Especially in combination with the Professional Tub, the Slide significantly expands the range of possible applications: the tub no longer has to stand directly beneath the discharge point but can be placed wherever there is enough space. The liquid is channeled there in a targeted way via the Slide.
Choose options
Bridges the gap between the exit point and the professional tub, ensuring clean conveyance.
- 50 cm long
- Can be secured with magnets or eyelets
- Flexibly shapeable
50cm
Length
30cm
Width at top
20cm
Width at bottom
Technical specifications
| Item number | 12006 |
|---|---|
| Dimensions | 50 cm long · 30 cm wide at the top / 20 cm wide at the bottom |
| Temperature resistance | up to 100 °C |
| Fastening | Neodymium magnet + eyelets |
| Design | integrated magnetic bending metal elements |
| Material | fabric-reinforced special tarpaulin |
| Resistance | heating water · glycol-based liquids · hydraulic & heating oil |
| Not suitable for | drinking water |
Flexibly formable
Integrated flexible metal elements can be repeatedly readjusted to suit different installation situations.
For tight installation spaces
The flexible design allows for use even where rigid solutions reach their limits.
Controlled discharge
Liquids are specifically collected and diverted.
Hands-free while working
After positioning, the product remains in place on its own and does not need to be held permanently.
1 parts, one system
Slide
Directs liquids precisely into the basin – 30 cm at the top, 20 cm at the bottom, 50 cm long. Can be secured via neodymium magnets or eyelets.
Frequently Asked Questions
How can the Slide be secured?
The Slide can be secured in various ways:
• Neodymium magnets in the mounting tabs for metallic surfaces
• Mounting system using the integrated eyelets (available separately)
• In combination with accessories, e.g. the Profi trough or the rosettes
Before use, ensure that the mounting is secure and suitable for the weight of the liquid.
Can the Slide be repaired if it is damaged?
Yes. Small holes or tears in the material can be repaired using our repair kit.
The integrated bendable metal elements are designed for frequent bending, but due to the Slide's design, they cannot be replaced.
What are the dimensions of the Slide?
30 cm wide at the top, 20 cm at the bottom, 50 cm long
What types of work is the Slide suitable for?
The Slide is suitable for the targeted drainage of liquids in hard-to-reach areas.
Typical areas of application include:
• Radiator connections
• Final drives
• Screw connections and valves
• Pipework
• Heating and plumbing installations
• Maintenance and repair work
