Double-Splash-Guard 2x15mm
The ideal solution for work on the radiator valve block.
- Two 15 mm openings each
- 50 mm spacing between the openings
- Specially for dual connection situations

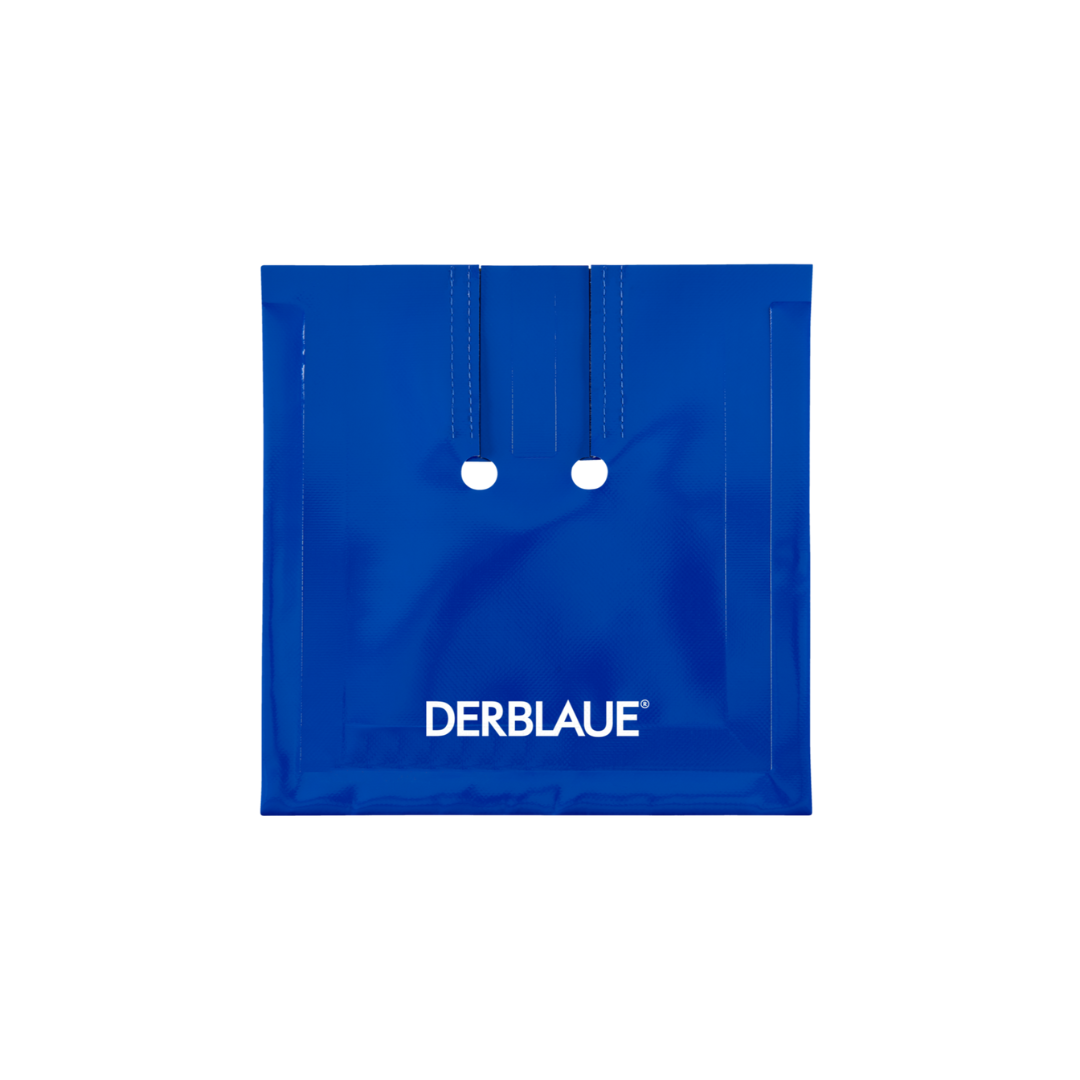

The DERBLAUE® Double-Splash-Guard is a compact splash and drip guard designed to ensure clean working when working on two adjacent pipes – for example, on the valve block of a radiator.
It is placed around both pipes and secured with the robust mushroom-head Velcro fastener. When the screw connections are opened, the rosette catches any escaping fluids directly at the source and protects the wall, floor and surrounding components from splashes and dirt.
Thanks to the integrated flexible metal elements, the ouble-Splash-Guard can be shaped flexibly and positioned precisely. This allows liquids to be channelled in a controlled manner downwards into a drip tray.
It enables clean and professional working, particularly during maintenance and service work in occupied or fully fitted-out rooms.
Choose options
The ideal solution for work on the radiator valve block.
- Two 15 mm openings each
- 50 mm spacing between the openings
- Specially for dual connection situations
2 x 15mm
Openings
50mm
spacing
Technical specifications
| Item number | 12005 |
|---|---|
| Openings | 2 × 15 mm |
| Dimensions | 27 x 27 cm |
| Distance between openings | 50 mm |
| Temperature resistance | up to 100 °C |
| Closure | mushroom head hook-and-loop fastener |
| Design | integrated magnetic bending metal elements |
| Material | fabric-reinforced special tarpaulin |
| Resistance | heating water · glycol-containing liquids |
| Not suitable for | drinking water |
Flexibly formable
Integrated flexible metal elements can be repeatedly readjusted to suit different installation situations.
Directly at the exit point
Liquids are collected directly at the point of leakage.
Clean work
Floors, walls, and structural components are shielded from dirt and liquids.
Controlled discharge
Liquids are specifically collected and diverted.
One part, one system
Double-Splash-Guard
Two openings of 15 mm each at a distance of 50 mm – for the valve block.
Frequently Asked Questions
How long does the mushroom head Velcro last?
The mushroom-head Velcro fastener can withstand approx. 500 openings/closings.
Can the Splash-Guards be repaired if they are damaged?
Small holes or tears can be repaired with our Repair-Kit. Due to the design, bending metal elements cannot be replaced in the Splash-Guards.
Can I use this product with drinking water?
No. The product must only be used with non-potable liquids in order to protect water quality.
