Single-Splash-Guard
For various pipes where splashes and drops must be prevented from escaping into the environment.
- For pipe diameters of 14–55 mm
- Can be secured with mushroom head hook-and-loop fastener
- With magnetic flexible metal elements

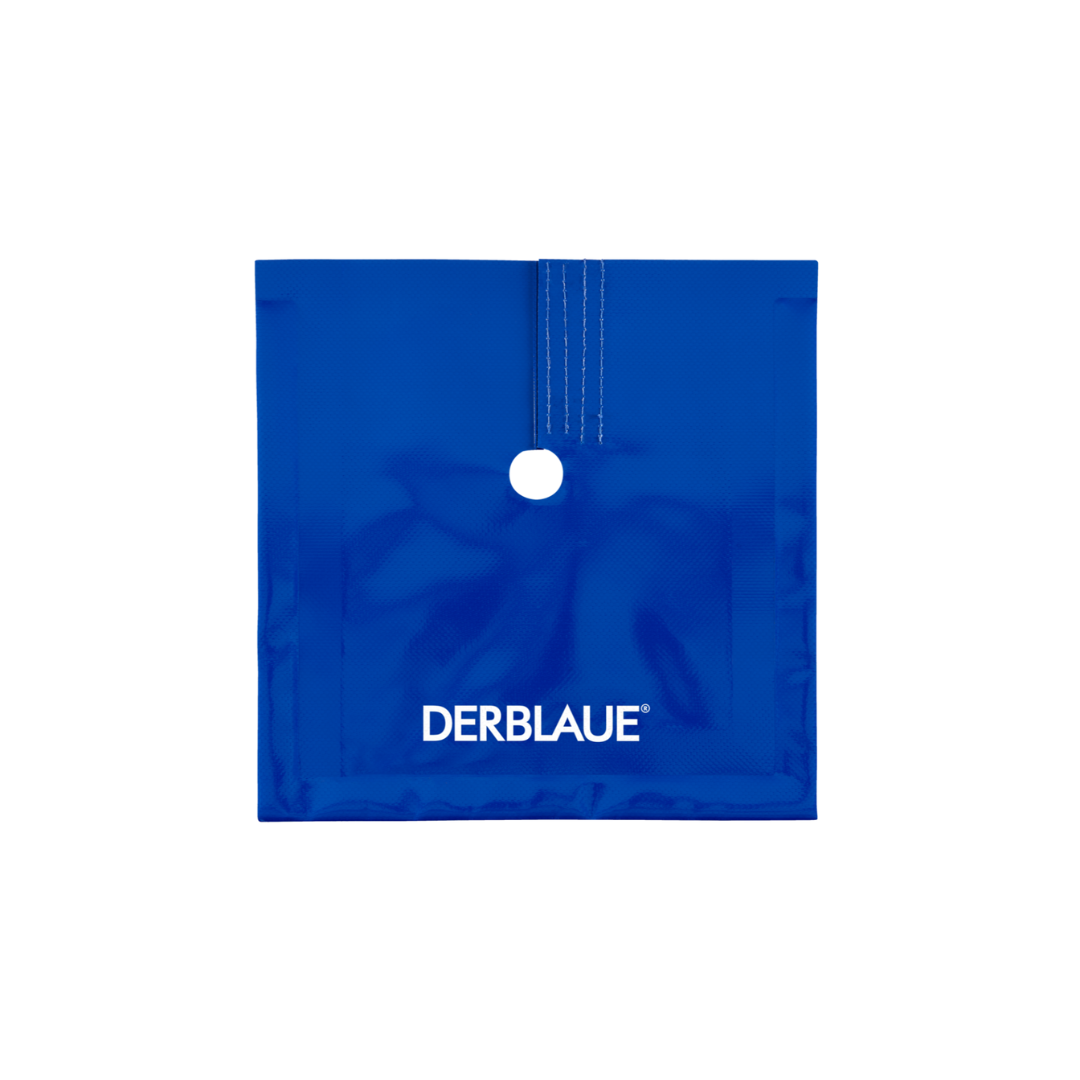

The DERBLAUE® Single-Splash-Guard is a compact splash and drip guard for clean work on pipes.

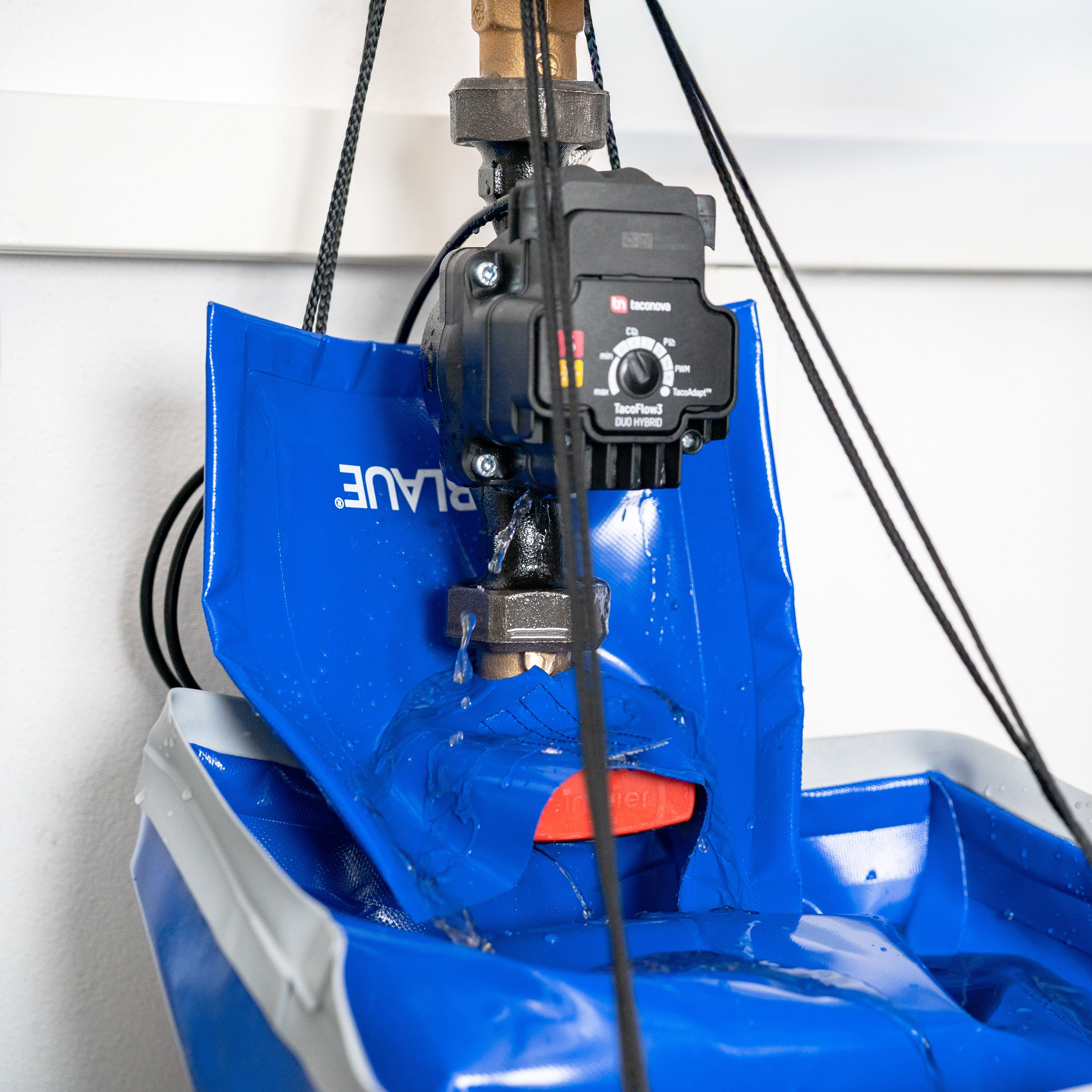

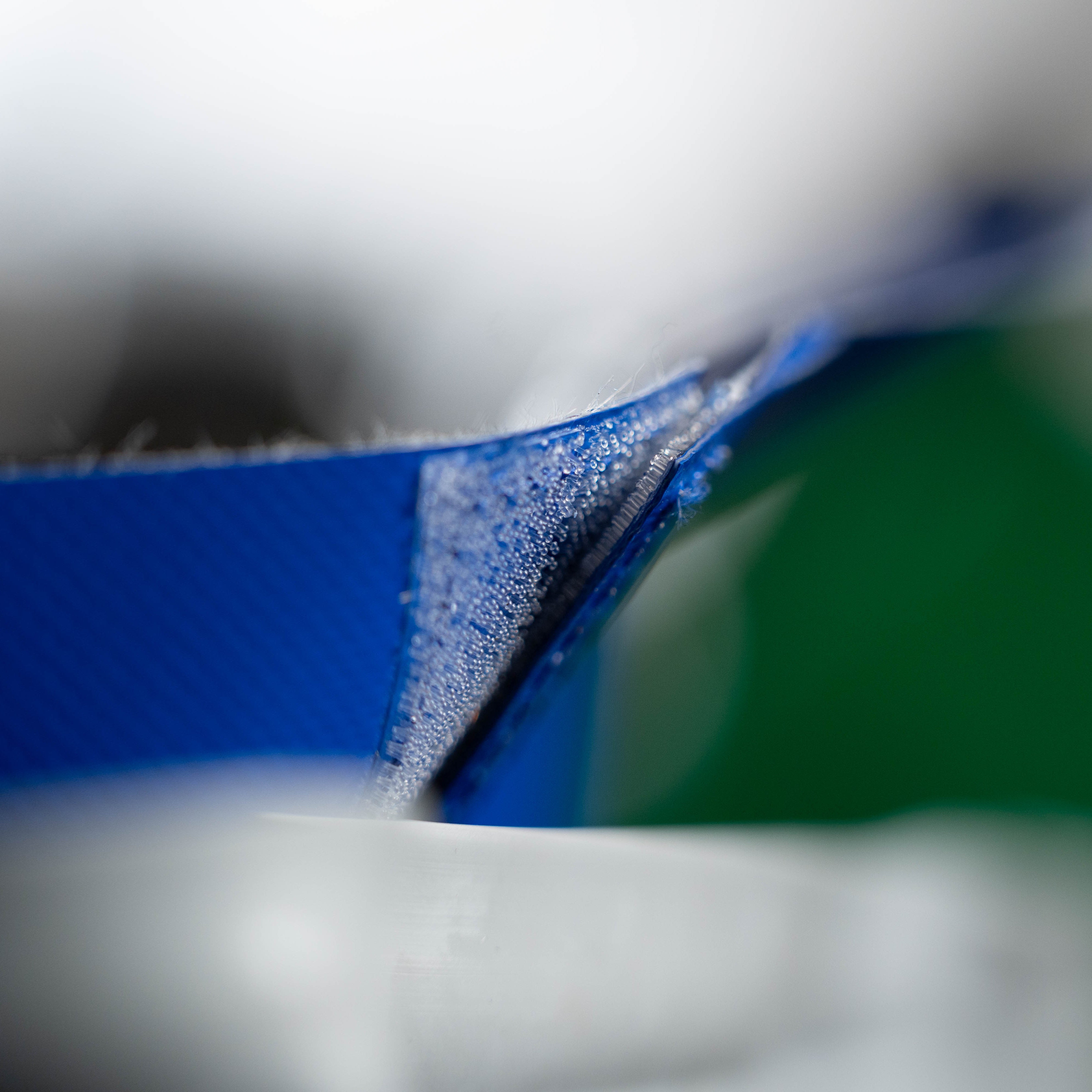

It is placed directly around the pipe and secured with the robust mushroom-head hook-and-loop fastener. This fastener holds reliably even when contaminated with oil. When a screw connection is opened, the Single-Splash-Guard catches escaping liquids right at the source and protects walls, floors and surrounding components from splashes and dirt.

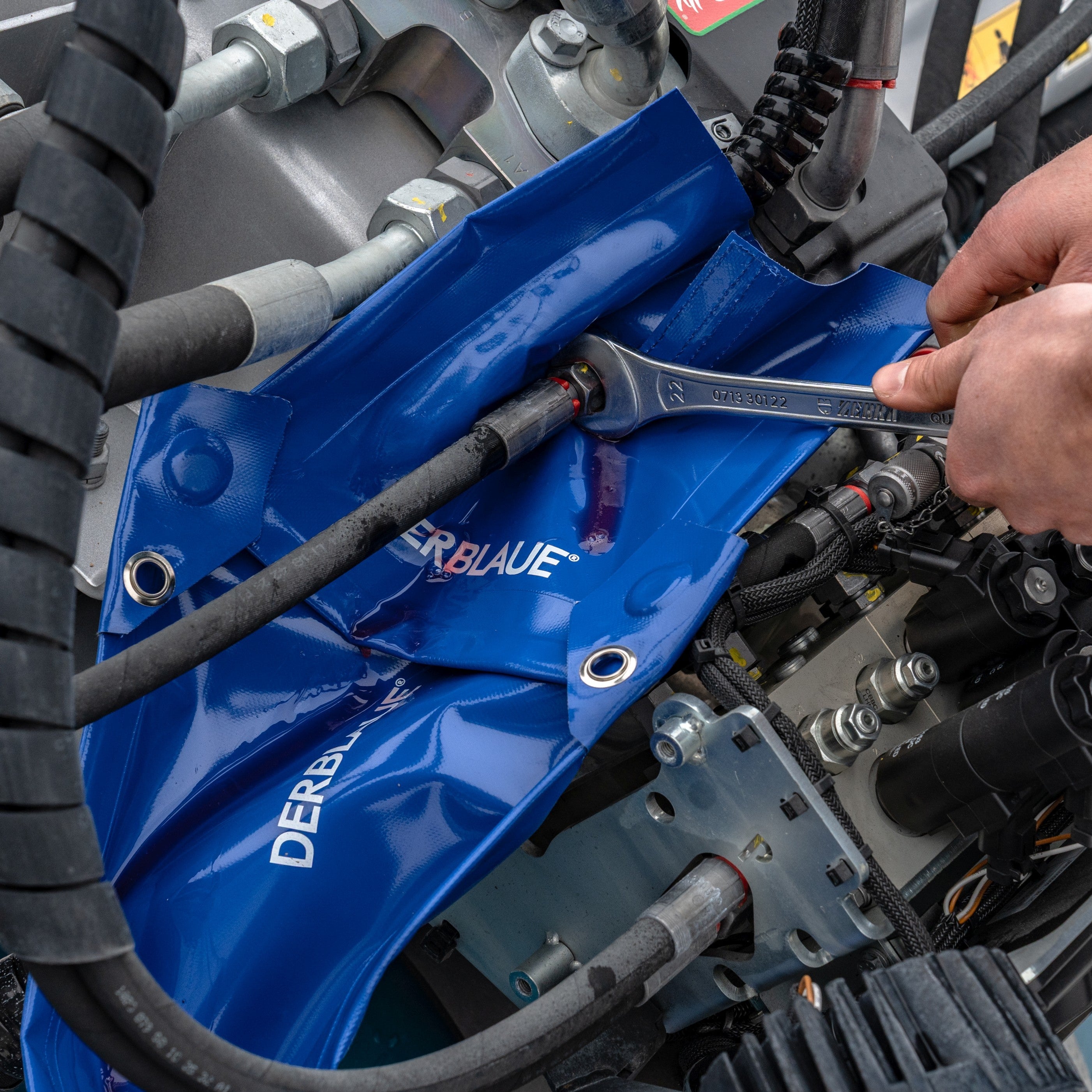

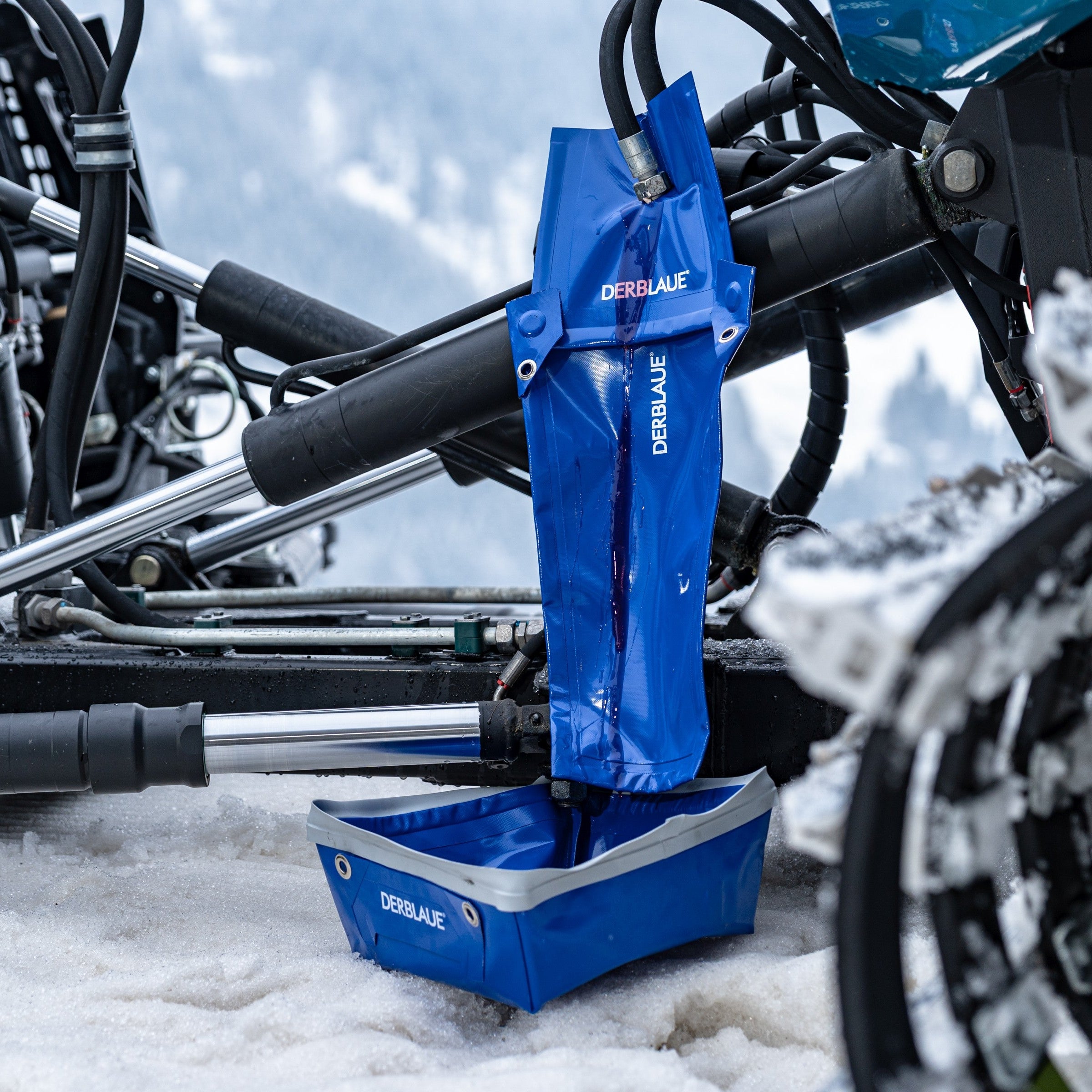

Thanks to the integrated bending metal elements, the Single-Splash-Guard can be reshaped as often as required and positioned precisely. At the same time, it can be connected to the magnets of the DERBLAUE® Slide, so that liquids can be channeled in a controlled manner into the Professional Tub.
The Single-Splash-Guard is available with openings of 14–55 mm.
The robust design is built for regular use in maintenance, service and customer support.
Choose options
For various pipes where splashes and drops must be prevented from escaping into the environment.
- For pipe diameters of 14–55 mm
- Can be secured with mushroom head hook-and-loop fastener
- With magnetic flexible metal elements
14–55mm
Pipe diameter
Technical specifications
| Item number | 15 mm = 12019 | 22 mm = 12004 | 30 mm = 12020 | 40 mm = 12021 | 50 mm = 12022 |
|---|---|
| Openings | 14 – 55 cm |
| Dimensions | 27 x 27 cm |
| Temperature resistance | up to 100 °C |
| Closure | mushroom head hook-and-loop fastener |
| Design | integrated magnetic bending metal elements |
| Material | fabric-reinforced special tarpaulin |
| Resistance | heating water · glycol-based liquids · hydraulic & heating oil |
| Not suitable for | drinking water |
Flexibly formable
Integrated flexible metal elements can be repeatedly readjusted to suit different installation situations.
Controlled discharge
Liquids are specifically collected and diverted.
Directly at the exit point
Liquids are collected directly at the point of leakage.
Clean work
Floors, walls, and structural components are shielded from dirt and liquids.
1 parts, one system
Single-Splash-Guard
Splash guard for pipe diameters of 14–55 mm.
Frequently Asked Questions
What pipe diameters are the Single-Splash-Guard suitable for?
Our Single-Splash-Guard are available in five sizes and are suitable for pipe diameters ranging from 14 to 55 mm.
The Double-Single-Splash-Guard is designed for two pipes, each with a diameter of 15 mm, and was developed specifically for use on the tap block.
How do I find the right Single-Splash-Guard size?
Select the Single-Splash-Guard to match the outer diameter of the pipe. Measure the pipe diameter or refer to the pipe designation. The compatible pipe diameters are specified in the technical data for each rosette.
How is the Single-Splash-Guard connected to the Slide?
The Single-Splash-Guard features integrated flexible metal elements which are magnetic and can therefore be connected precisely to the magnets on the Slide.
Before use, check that the connection is secure and that the liquid is being reliably channelled into the chute.
You can find further combination options for our products here.
Can I adapt the Single-Splash-Guard to the installation situation?
Yes. Thanks to the integrated flexible metal elements, the Single-Splash-Guard can be individually adapted to the specific installation situation and moulded precisely around the pipe.
What types of work are the rosettes suitable for?
The Single-Splash-Guard enable the neat collection and drainage of liquids directly at pipe penetrations.
Typical areas of application include:
• Radiator connections
• Tap blocks
• Pipework
• Heating and plumbing installations
• Maintenance and repair
