Funnel 80 cm
The versatile collection funnel for a wide range of maintenance and cleaning tasks.
- 80 cm diameter
- Good balance of size and flexibility
- Suitable for many applications
The DERBLAUE® Funnel 80 is the versatile all-rounder amongst collection funnels and is suitable for a wide range of maintenance, cleaning and servicing tasks.
Its collection area offers sufficient space to reliably collect liquids, even in larger work areas. At the same time, the funnel remains flexible enough to be suspended and positioned in a variety of locations.
The liquid is drained directly from the work area via a connected hose. This protects floors, walls and surrounding components from splashes and dirty water.
After use, the funnel can be stored to save space and easily transported to the next job site.
The Funnel 80 is particularly suitable for emergency services: quick to access and straightforward to use. Ideal for situations where spilled liquids need to be collected immediately and in a controlled manner.
Choose options
The versatile collection funnel for a wide range of maintenance and cleaning tasks.
- 80 cm diameter
- Good balance of size and flexibility
- Suitable for many applications
80 x 80cm
Öffnung
ca. 50l
Fassungsvermögen
80kg
max. Belastung
Technical specifications
| Item number | 12008 |
|---|---|
| Dimensions | 80 × 80 cm |
| Capacity | approx. 50 l |
| Connection | ¾″ external thread · ½″ internal thread |
| Connection material | brass |
| Mounting | height-adjustable from approx. 80–140 cm |
| Max. load on suspension | 80 kg |
| Temperature resistance | up to 100 °C |
| Filter | removable filter insert |
| Construction | robust fibreglass rods |
| Material | fabric-reinforced special tarpaulin |
| Compatibility | heating water · glycol-based fluids · hydraulic oil & heating oil |
| Not suitable for | drinking water |
Kompakt & handlich
Die robuste, gewebeverstärkte PVC-Spezialplane lässt sich platzsparend zusammenlegen, falten oder rollen und einfach transportieren.
Kontrolliertes ableiten
Flüssigkeiten werden gezielt aufgefangen und weitergeleitet.
Flexibel positionierbar
Das Produkt kann passend zur jeweiligen Arbeitsstelle ausgerichtet und befestigt werden.
Sauberes Arbeiten
Böden, Wände und Bauteile werden vor Schmutz und Flüssigkeiten abgeschirmt.
[count] parts, one system

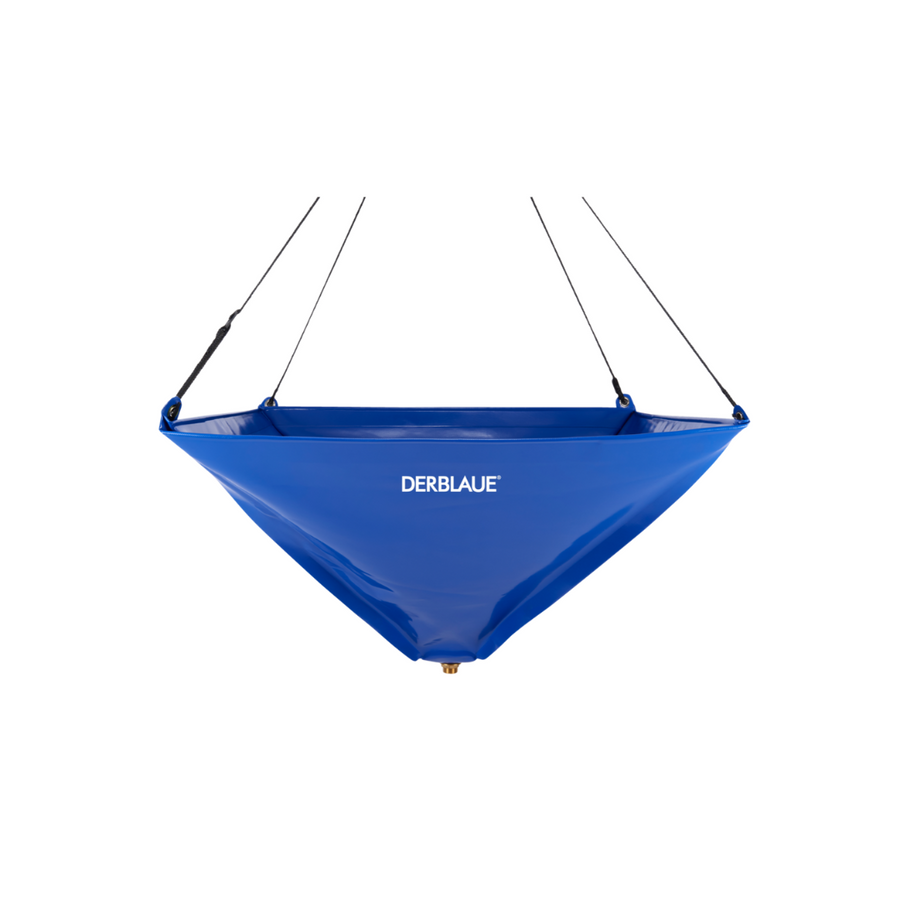

Trichter 80
Flexibler Auffangtrichter mit 80 cm Durchmesser – zum sauberen Auffangen und Ableiten von Flüssigkeiten bei Wartungs- und Reinigungsarbeiten.
Aufhängsystem
Zum flexiblen und sicheren Aufhängen der Produkte – mit zwei Leinen für eine stabile Befestigung an unterschiedlichen Einsatzorten.
Frequently Asked Questions

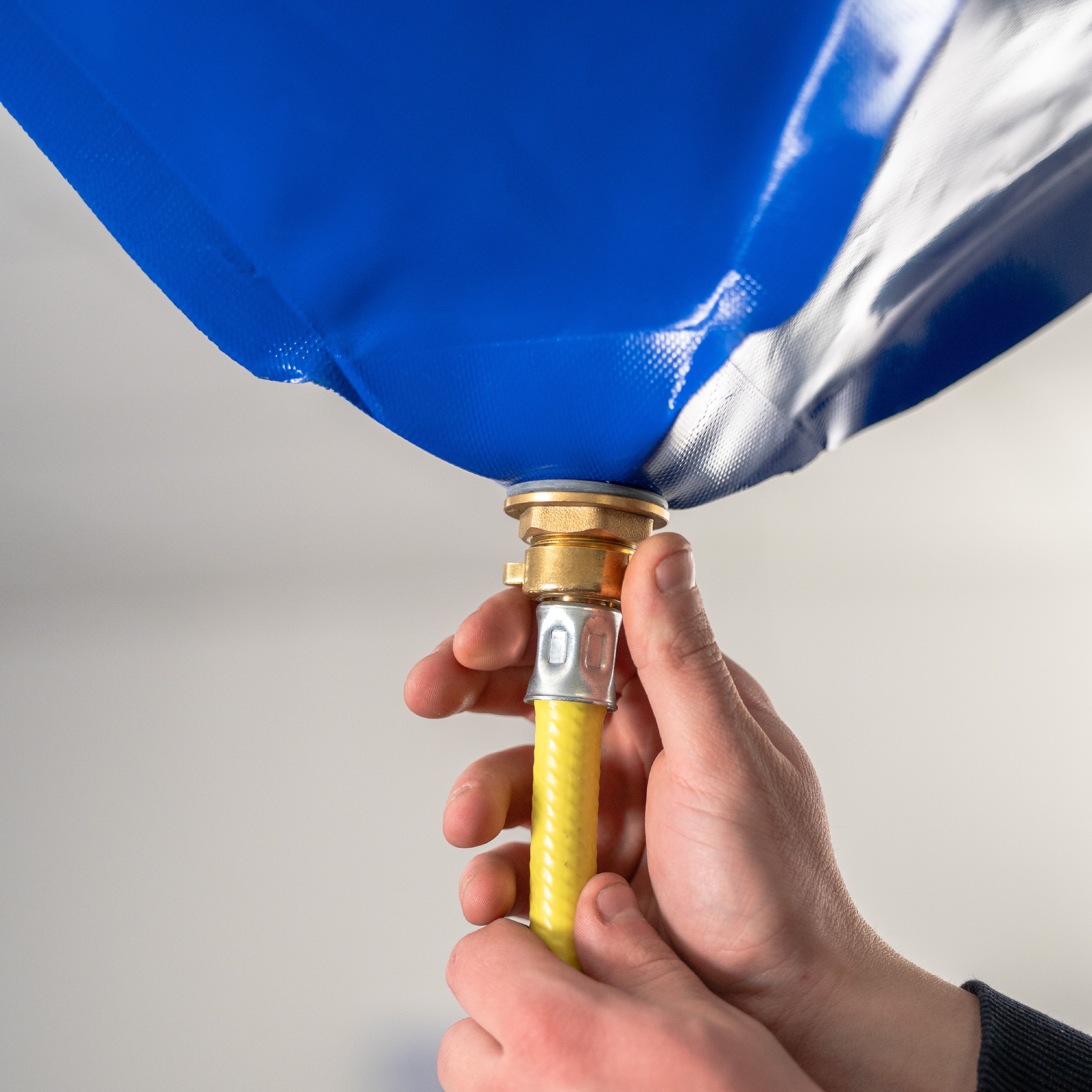

What material is the hose connection made of, and what thread sizes does it have?
The hose connection is made of sturdy brass. It has a ¾-inch external thread and a ½-inch internal thread, and can be used with suitable hoses and fittings.
What mounting system is used with the Funnel 80?
The Funnel 80 uses the standard suspension system, which is approximately 80 to 140 cm in length. It is designed to withstand a maximum load of 80 kg.
Check the rope, attachment points and connecting elements for damage and ensure they are securely fastened before each use.
What is the capacity of the Funnel 80?
The Funnel 80 has a capacity of approximately 50 litres.
The liquid is continuously drained off via the connected hose. This means that even larger quantities of liquid can be collected.
How does the Funnel 80 retain its shape?
The funnel is held in shape by sturdy fibreglass rods. This ensures that the collection area remains reliably open during use.
What types of work is the Funnel 80 suitable for?
The Funnel 80 is suitable for larger pipework, outlet points and a wide range of maintenance and servicing tasks.
Typical areas of application include:

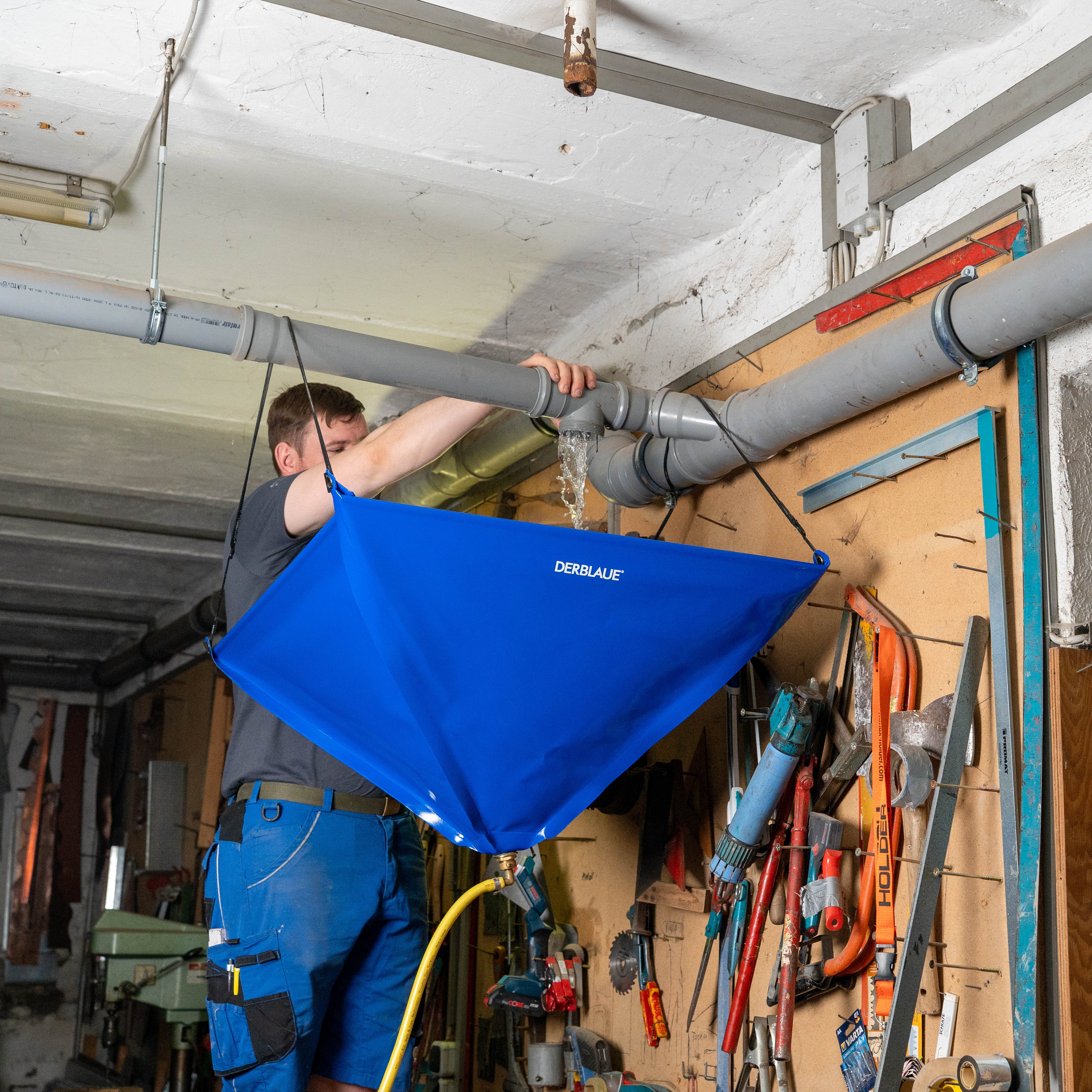

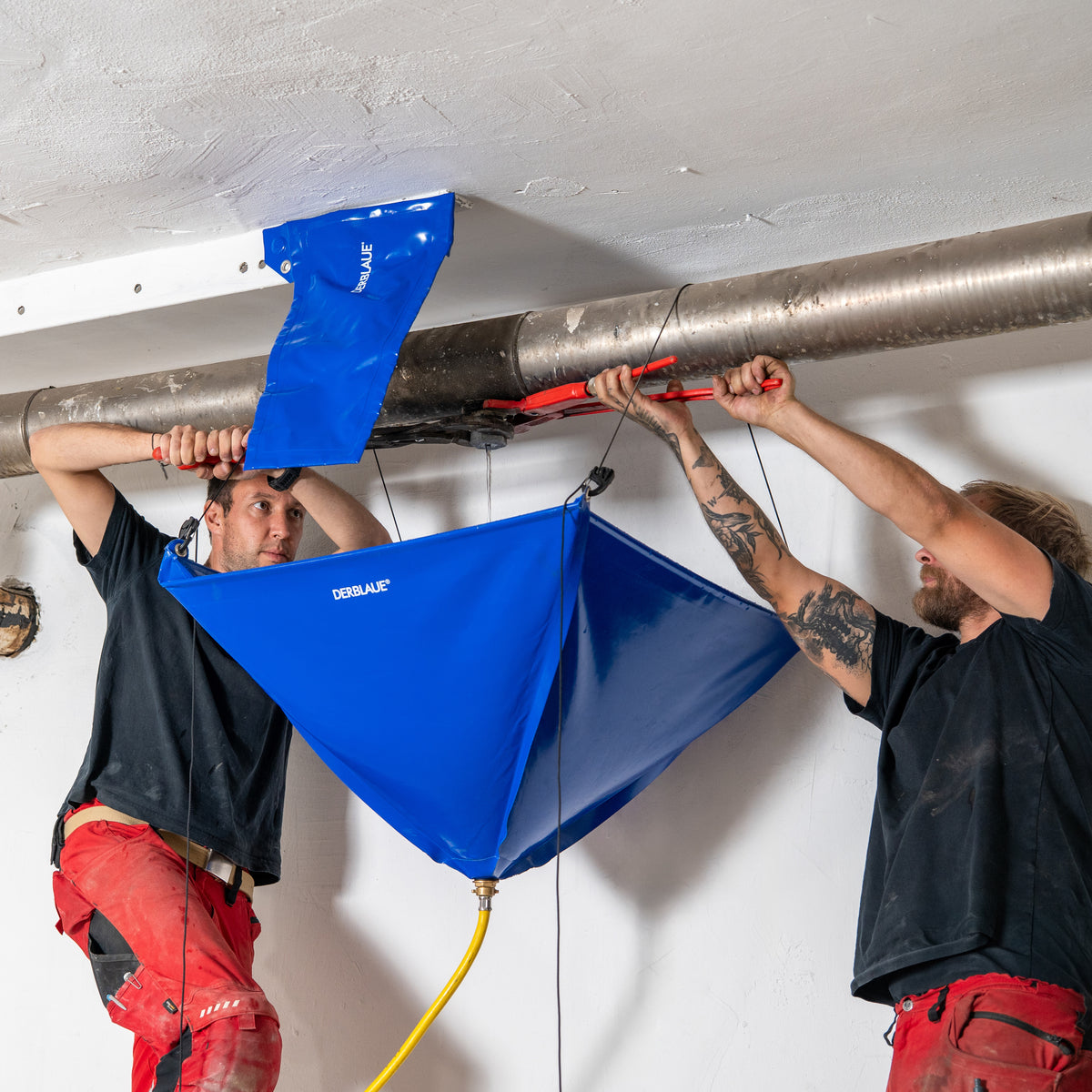

• Pipework
• Downpipes
• Property connections

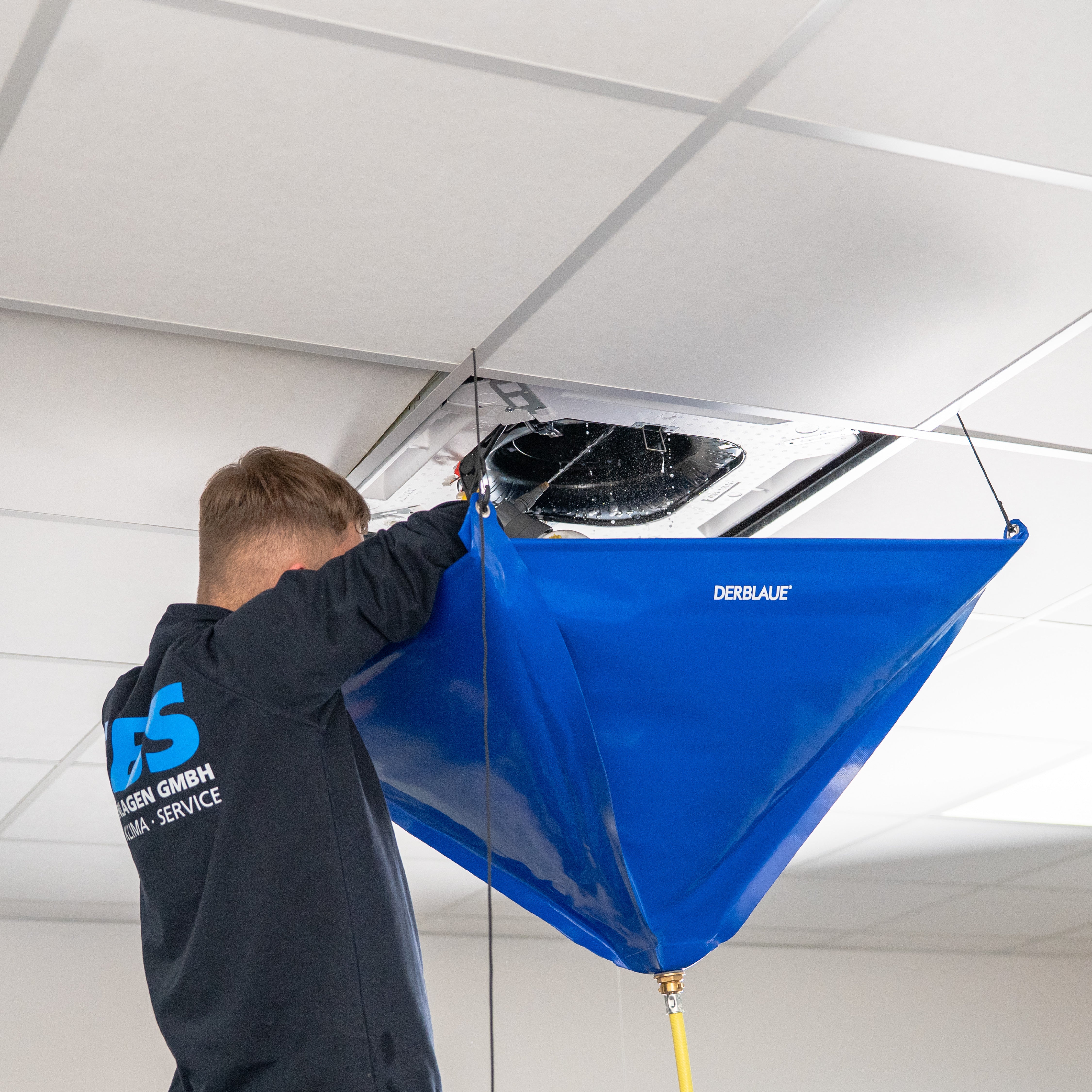

• Ceiling panels up to approx. 80 cm
• Maintenance, repair and installation work
When should I choose the Funnel 80?
The Funnel 80 is a versatile all-rounder when a larger collection area is required.
Can the Funnel 80 be used with a hose?
Yes. The liquid can be channelled directly and in a controlled manner via the integrated hose connection.
Can I use this product with drinking water?
No. The product must only be used with non-drinking water liquids in order to protect water quality.
