Complete Set (EU)
The all-round equipment for professional work with liquids – for maintenance, service, and repair.
- Multiple solutions combined in one set
- Suitable for various areas of application
- Start immediately, fully equipped
DERBLAUE ® Complete Set
delivers an “all-round, worry-free package” for every application! Liquids can be collected in the highly flexible Professional Tub and pumped away using the powerful Pump System, powered by a power supply or splash-proof Battery. The Helper-Set included in the scope of delivery ensures maximum cleanliness of the construction site, consisting of a Slide, Single- and Double-Splash-Guard. While the Splash-Guards serve as splash protection around pipes, the Slide directs liquids specifically into the Professional-Tub. All products are equipped with strong bending metal elements that can be shaped as often as required and can therefore also be used for tight, narrow or angled installation situations.
Note: This product is not suitable for drinking water. It may only be used with non-potable liquids, as otherwise the water quality may be impaired.
Choose options
The all-round equipment for professional work with liquids – for maintenance, service, and repair.
- Multiple solutions combined in one set
- Suitable for various areas of application
- Start immediately, fully equipped
10 l/min
Förderleistung
10 l
Fassungsvermögen
3,5Std.
Akku-Laufzeit
Technical specifications
| Item number | 13014 |
|---|---|
| Dimensions professional tub | 34 × 34 × 12.5 cm |
| Capacity professional tub | 10 l |
| Pump | 12 V |
| Pump flow rate | 10 l/min |
| Pump dry run | up to 45 min |
| Pump low suction | down to 5 mm |
| Pump filter mesh size | 1 mm |
| Pump cable length | 2 m |
| Pump temperature resistance | up to 60 °C |
| Battery | 12 V · 6 Ah / 6,000 mAh |
| Flow rate per battery charge | up to 1,500 l |
| Battery runtime | 3.5 hrs. |
| Battery charging time | approx. 3 hrs. |
| Hose | 3 m · extendable up to 50 m |
| Chute | 50 cm long · 30 / 20 cm wide |
| Single rosette | 21–27 mm opening |
| Double rosette | 2 × 15 mm · 50 mm spacing |
| Rosette closure | mushroom head hook-and-loop fastener |
| Temperature resistance | up to 100 °C |
| Shape | integrated magnetic bending metal elements |
| Material | fabric-reinforced special tarpaulin |
| Pump resistance | heating water · glycol-containing liquids |
| Resistance | heating water · glycol-containing liquids · hydraulic & heating oil |
| Not suitable for | drinking water |
Für Wartung & Service
Entwickelt für den regelmäßigen Einsatz bei Reparatur-, Wartungs- und Servicearbeiten.
Sauberes Arbeiten
Böden, Wände und Bauteile werden vor Schmutz und Flüssigkeiten abgeschirmt.
Kontrolliertes ableiten
Flüssigkeiten werden gezielt aufgefangen und weitergeleitet.
Robust für den Arbeitsalltag
Die robusten Materialien sind auf den täglichen Einsatz vor Ort ausgelegt.
[count] parts, one system
Profi-Wanne
Aus gewebeverstärkter Spezialplane mit integrierten Biegemetallelementen und umlaufender Dichtlippe.

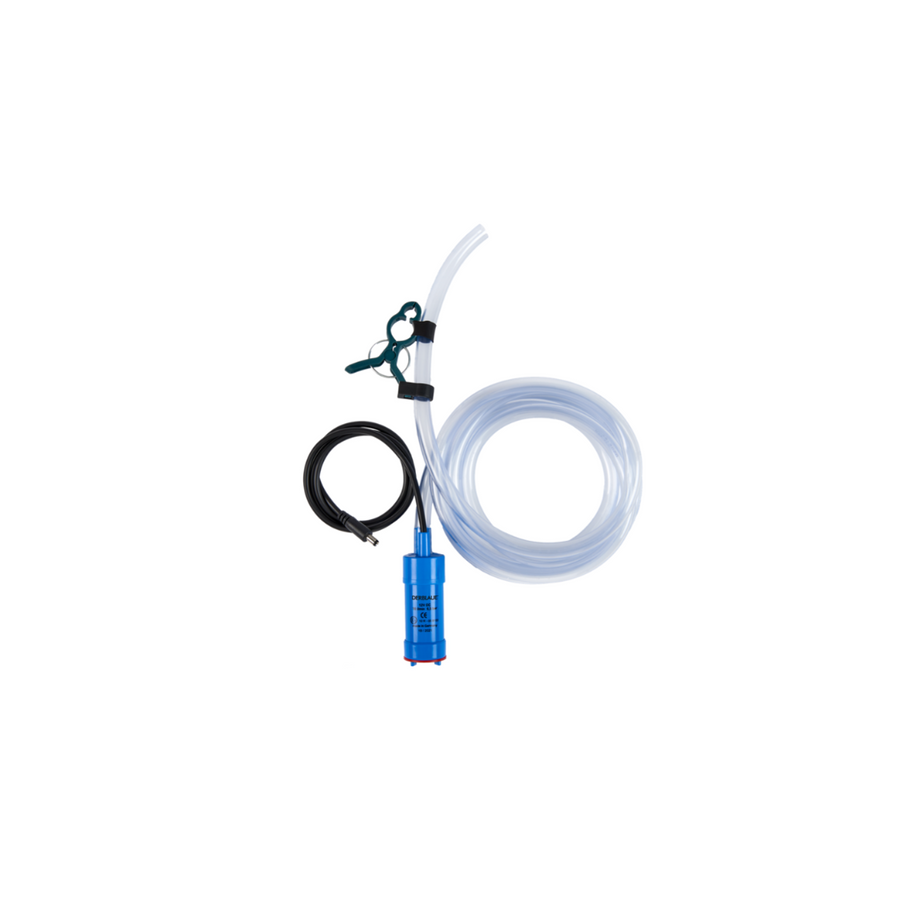

Pumpe mit Schlauch
10 Liter Fördermenge pro Minute, inkl. 3-m-Schlauch und Halteclip. Passt durch 50-mm-Öffnungen.
Netzteil
Zum Betreiben der Pumpe oder Laden des Akkus.
Rutsche
Leitet Flüssigkeiten gezielt in die Wanne – oben 30 cm, unten 20 cm, 50 cm lang. Fixierbar über Neodym-Magnete oder Ösen.
Einfach-Rosette 22 mm
22 mm Öffnung – Spritzschutz für Rohrdurchmesser von 21–26 mm.

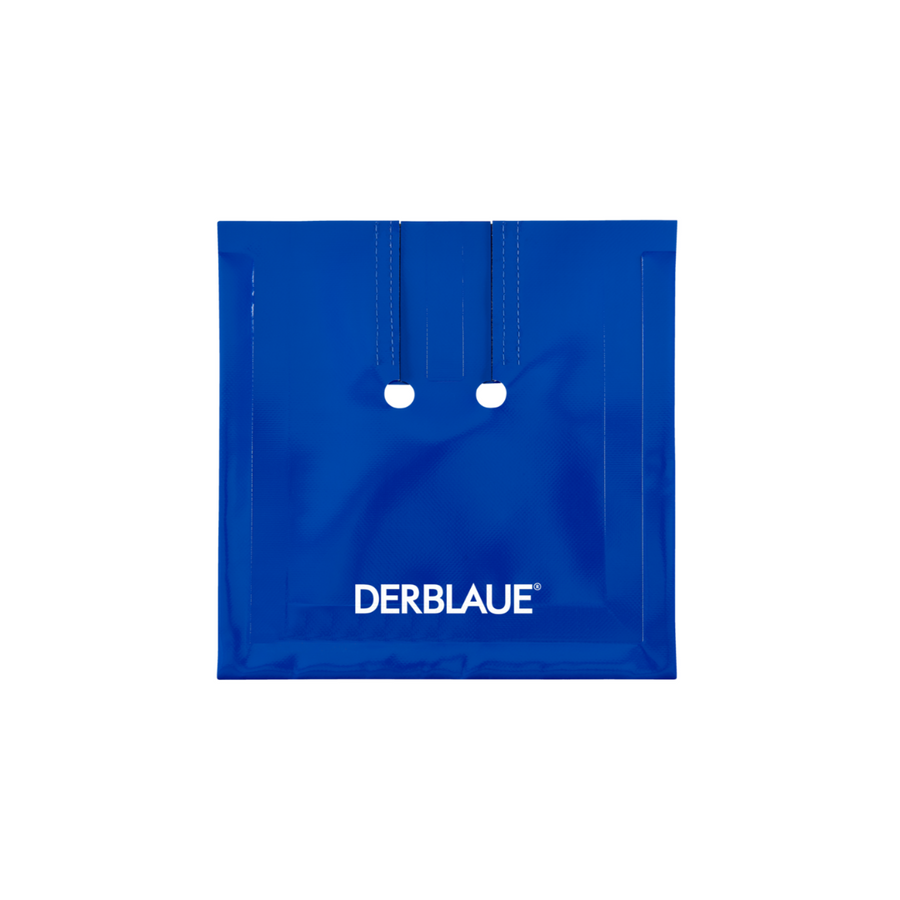

Doppel-Rosette
Zwei Öffnungen je 15 mm im Abstand von 50 mm – für den Hahnblock.

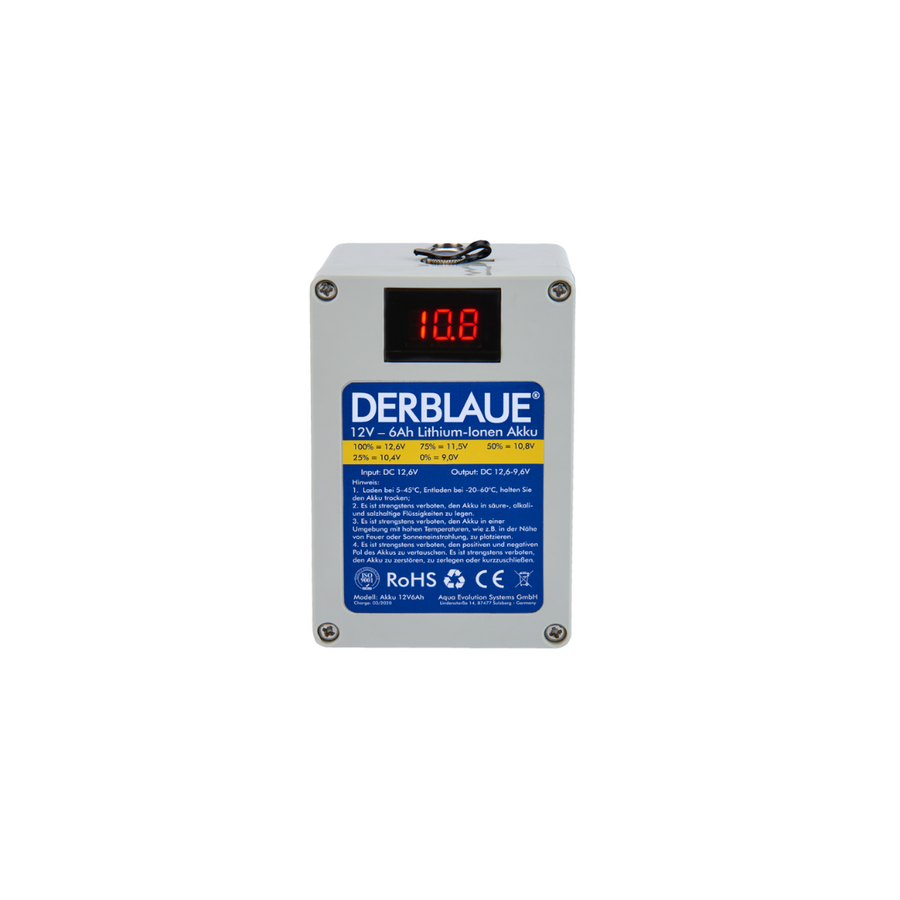

Akku
6.000 mAh, stoßfest und spritzwassergeschützt – 3,5 Std. Laufzeit, bis zu 1.500 Liter Fördermenge.
Beutel
Für die praktische Aufbewahrung der Produkte.
Frequently Asked Questions
Does the Pump switch off automatically?
No. The Pump does not have a float switch, but can run dry for 45 minutes on its own and does not need to be monitored the entire time.
How low can the Professional Tub be used?
Our Professional Tub is suitable for particularly narrow, low or angled installation situations. It can be pressed so flat that you can even slide it under 5mm openings.
Is the Professional Tub permanently waterproof?
Yes. Our Professional Tub was made from a very robust, fabric-reinforced special tarpaulin that is permanently waterproof.
Exception: Damage caused by pointed, sharp objects or tools as well as surfaces. Care must be taken not to damage the tub. However, small holes or cracks in the tub floor can be repaired with our Repair-Kit.
What liquids is the Professional Tub suitable for?
The Professional Tub is resistant to all common liquids, including contaminated heating water, liquids containing glycol, hydraulic and heating oil and many others
Is the Professional Tub really stable when in use?
Bend the Professional Tub into exactly the shape you need and it will stay stable and hold the shape. It cannot fold on its own as long as there is no load applied.
How long do the bending elements last?
Our Professional Tub has been on the market for 3 years and we have not yet received a complaint due to defective bending metal elements. If they do break, the bending metal elements can be purchased as spare parts and replaced.
Is there an on-off switch for the Pump?
No, if the Pump is operated with a power supply. Here the power supply must be connected or disconnected from a power source in order to start or stop the pumping process.
Yes, if the Pump is powered by a battery. There is an on/off button here.
Does a sequence have to be followed when starting up the Pump?
Yes. If the pump is operated with the power supply, it is important to first plug the power supply into the socket. And then connect the Pump to the power supply.
Can the Pump also be used individually?
Yes. Thanks to the very compact design of the Pump, it even fits through 50mm openings.
If, for example, the emptying of buffer storage is defective, the Pump can be placed from above through a small opening.
What hose length can the Pump be operated with?
The DERBLAUE® scope of delivery includes a 3m hose. However, the hose length can be extended up to 50m if necessary.
