Helper Set
The practical combination of a Slide, Single-Splash-Guard & Double-Splash-Guard for clean work at hard-to-reach exit points.
- Collect liquids directly at the discharge point
- Flexibly adapt the chute and rosettes to the installation situation
- Ideal as a supplement to the professional tray
The DERBLAUE® Helper Set combines a Slide, a Single-Splash-Guard and a Double-Splash-Guard to provide a practical solution for clean maintenance and servicing work.

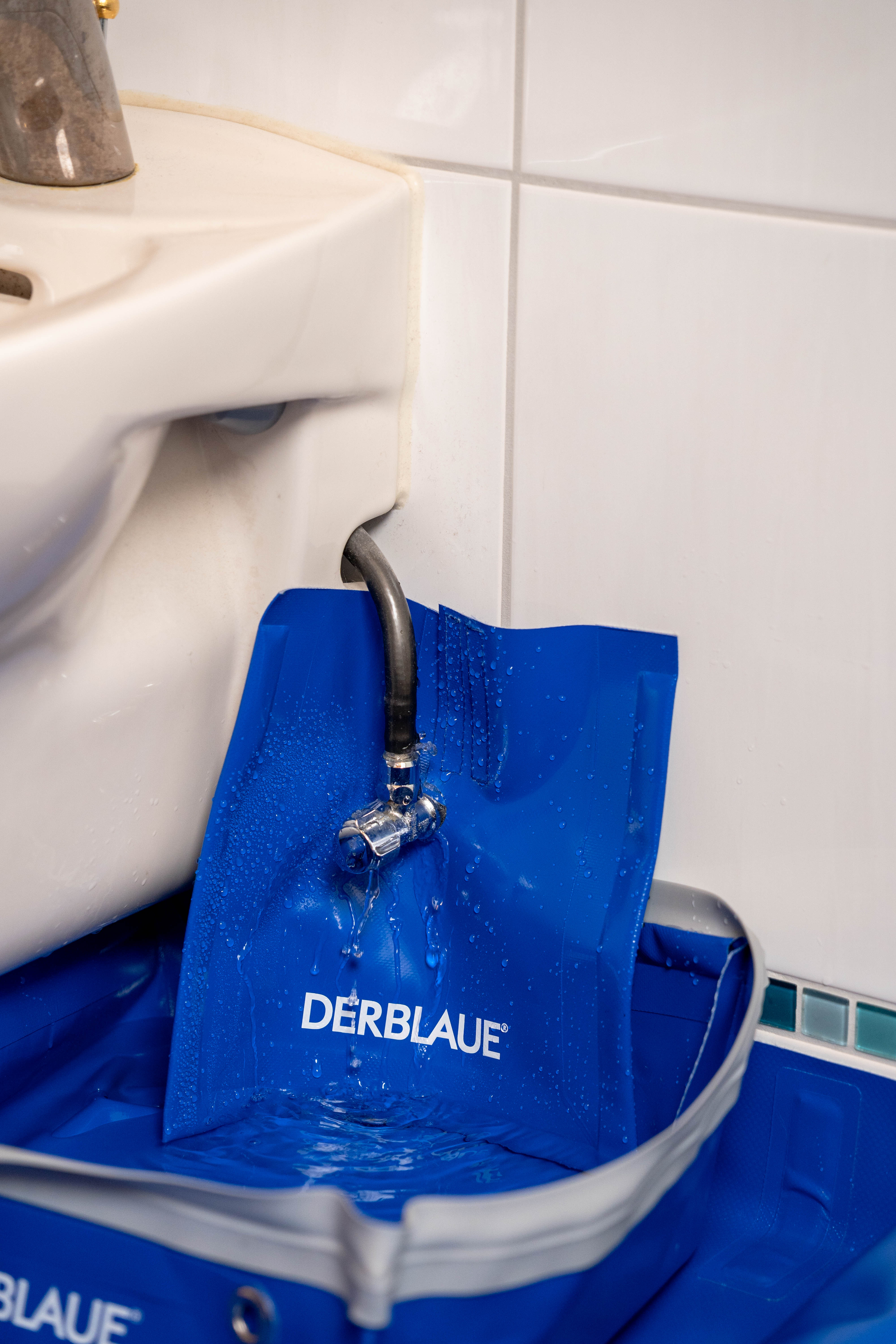

The Splash-Guards are fitted directly onto screw connections and collect any leaking fluids right at the source. The Single-Splash-Guard is suitable for individual connections, whilst the Double-Splash-Guard is designed for two adjacent connections – for example, on a radiator valve block.

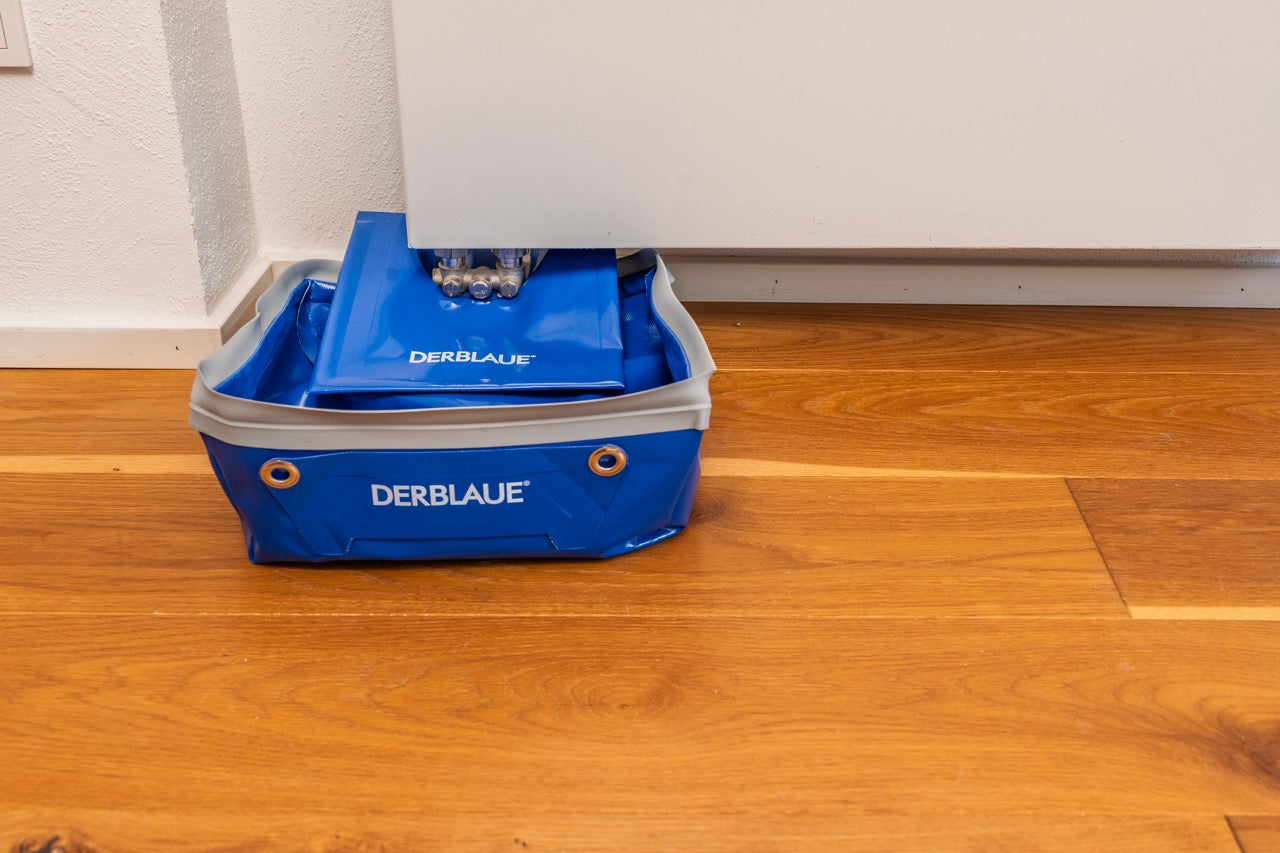

The Slide can then be used to direct fluids from hard-to-reach installation locations into a separately available drip tray. All components feature flexible, bendable metal elements and can be individually adapted to the specific working situation.
In addition, the Slide is fitted with strong neodymium magnets. This allows it to be connected directly to the flexible metal elements of the Splash-Guards or the DERBLAUE® Professional Tub.
This creates a continuous collection path from the screw connection right through to the Slide – ensuring clean and controlled working.
Choose options
The practical combination of a Slide, Single-Splash-Guard & Double-Splash-Guard for clean work at hard-to-reach exit points.
- Collect liquids directly at the discharge point
- Flexibly adapt the chute and rosettes to the installation situation
- Ideal as a supplement to the professional tray
50cm
long Slide
22mm
Diameter of Single-Splash-Guard
2 × 15mm
Double-Splash-Guard
Technical specifications
| Item number | 13003 |
|---|---|
| Slide | 50 cm long · 30 cm wide at the top / 20 cm wide at the bottom |
| Slide attachment | Neodymium magnet + eyelets |
| Single-Splash-Guard | 21–27 mm opening |
| Double-Splash-Guard | 2 × 15 mm · 50 mm spacing |
| Temperature resistance | up to 100 °C |
| Splash-Guard closure | mushroom-head hook-and-loop fastener |
| Design | integrated magnetic flexible metal elements |
| Material | fabric-reinforced special tarpaulin |
| Resistance | heating water · glycol-containing liquids · hydraulic & heating oil |
| Not suitable for | drinking water |
For Maintenance & Service
Designed for regular use in repair, maintenance, and service work.
Directly at the exit point
Liquids are collected directly at the point of leakage.
For tight installation spaces
The flexible design allows for use even where rigid solutions reach their limits.
Clean work
Floors, walls, and structural components are shielded from dirt and liquids.

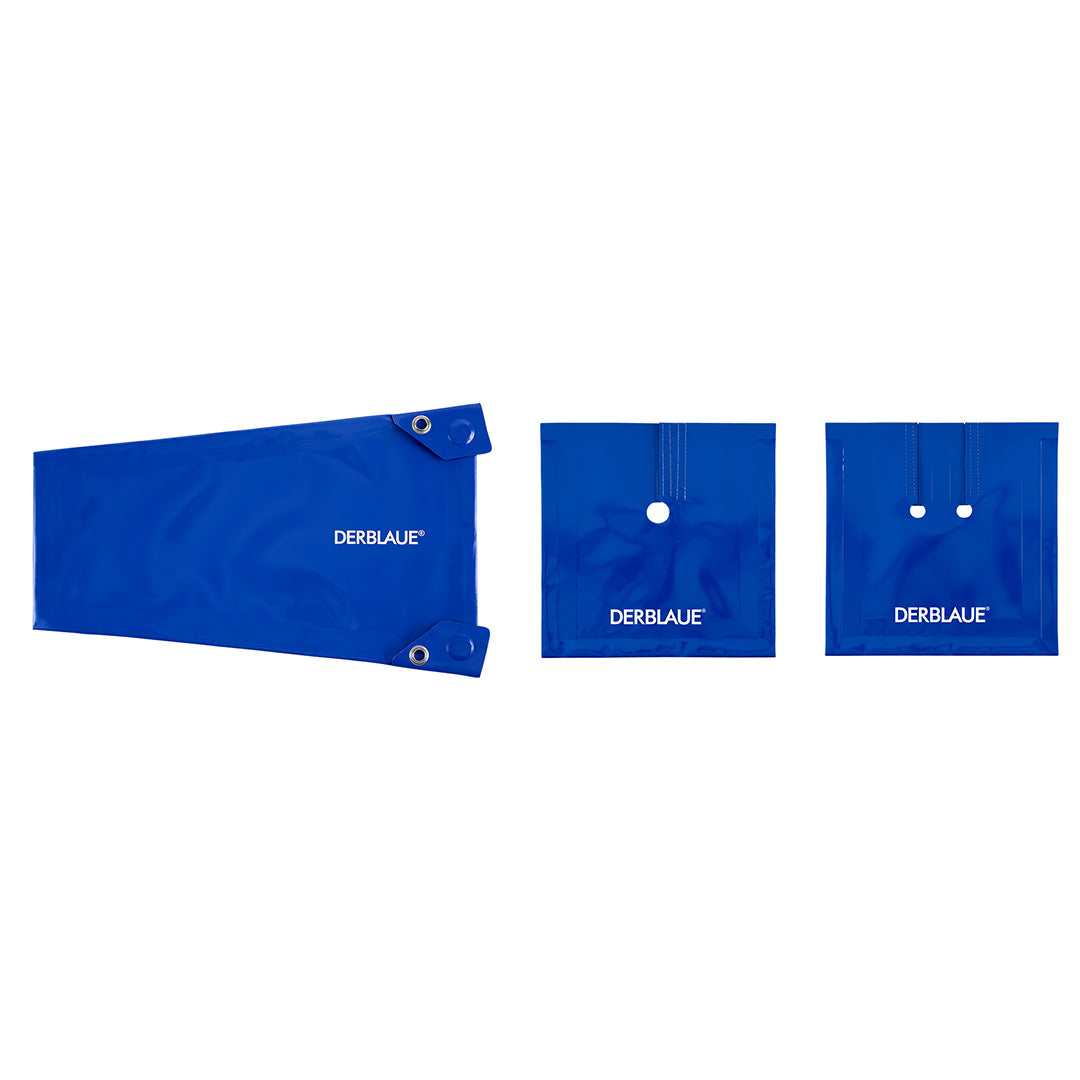

3 parts, one system
Slide
Directs liquids precisely into the basin – 30 cm at the top, 20 cm at the bottom, 50 cm long. Can be secured via neodymium magnets or eyelets.
Single-Splash-Guard 22 mm
22 mm opening – splash guard for pipe diameters of 21–26 mm.
Double-Splash-Guard
Two openings of 15 mm each at a distance of 50 mm – for the valve block.
Frequently Asked Questions
What is included in the Helper Set?
• Slide
• Single-Splash-Guard with 22 mm diameter
• Double-Splash-Guard with 2 × 15 mm diameter
What is the Helper Set suitable for?
The Helper Set is suitable wherever leaking liquids need to be caught directly at screw connections and channeled in a controlled way into a collection tub.
What is the difference between the Single and Double-Splash-Guard?
The Single-Splash-Guard is designed for a single connection. The Double-Splash-Guard has two openings and is suitable, for example, for two adjacent connections on a manifold.
Do I need an additional collection tub?
To collect the channeled liquid in a controlled way, we recommend combining it with a suitable collection tub, for example the DERBLAUE® Professional Tub.
How do I clean the Slide and Splash-Guards?
After use, clean with water and, if necessary, a mild, material-compatible cleaning agent, and let dry completely.
Can I use the Helper Set with drinking water?
No. The products may only be used with suitable non-drinking-water liquids.
You will find the most frequently asked questions about the individual products in the set directly on the respective product page - from the Professional Tub to the pump and battery pack to the Slide and Splash-Guards.
